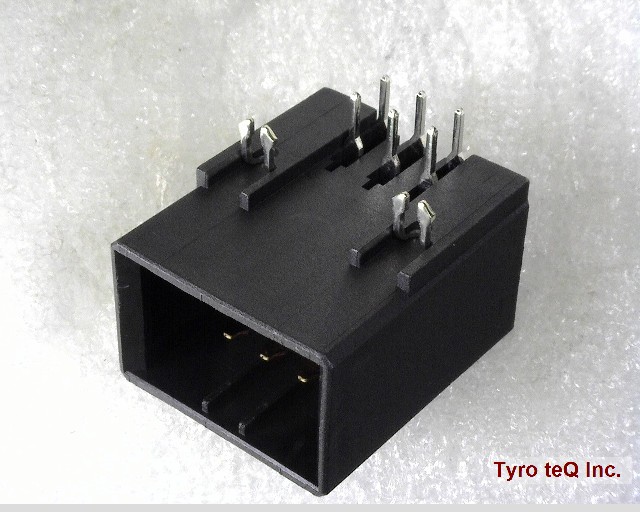

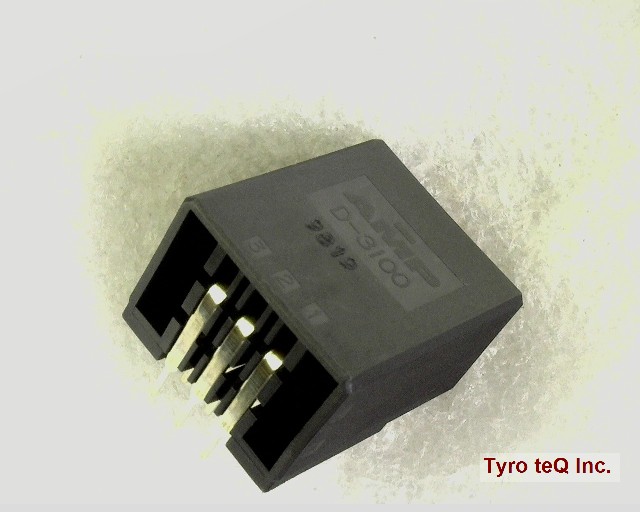

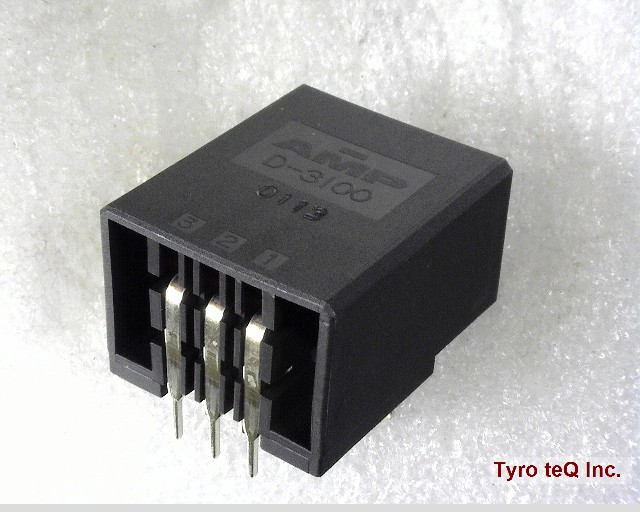

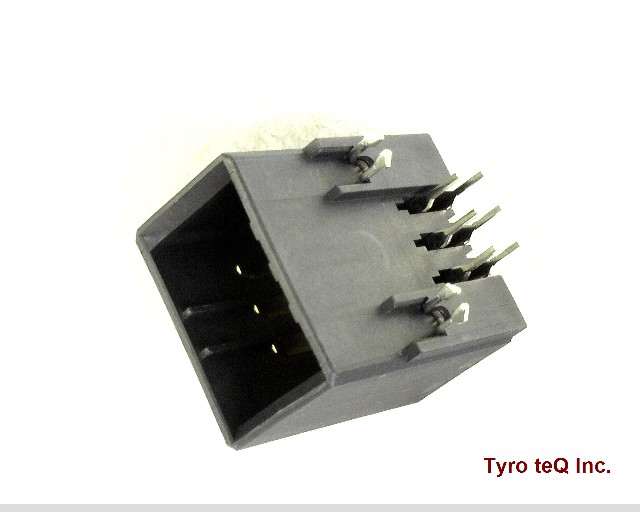

178303-2

Name: 178303-2
Brand: AMP
SKU: 20501428-0000-0000-0000

178303-2 - AMP の商品詳細ページです。

２営業日以内に回答いたします

178303-2 の詳細情報

型番	178303-2
メーカー	AMP
Board Mounting Option	PEG
Body Breadth	0.134 inch
Body Depth	0.059 inch
Body Length	0.8 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	424VAC V
EMI Shielded	NO
Empty Shell	YES
Filter Feature	NO
IEC Conformance	NO
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYESTER
MIL Conformance	NO
Mains Connector Rating	9.5A
Manufacturer Series	178
Mating Contact Pitch	0.05 inch
Mating Contact Row Spacing	0.05 inch
Mating Information	178289-3
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Ports	1
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	3.0988 mm
Panel Mount	NO
Plating Thickness	15u inch
Polarization Key	POLARIZED
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	1.27 mm
Termination Type	SOLDER
Total Number of Contacts	6
UL Flammability Code	94V-0
