176283-1 データシート

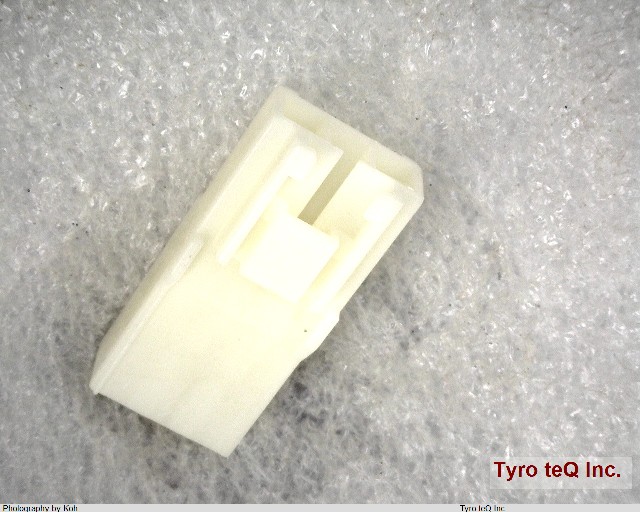

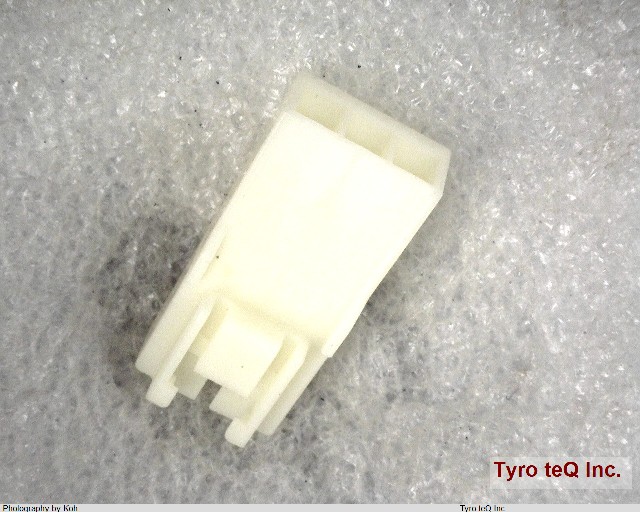

Name: 176283-1
Brand: AMP
SKU: 20000296-0000-0000-0000

176283-1 - AMP の商品詳細ページです。

２営業日以内に回答いたします

176283-1 の詳細情報

型番	176283-1
メーカー	AMP
データシート
Additional Feature	COMPATIBLE CONTACTS: 175149-1; 175149-2; 175150-1; 175150-2
Body Breadth	0.33 inch
Body Depth	0.33 inch
Body Length	1.14 inch
Body/Shell Style	RECEPTACLE
Connector Type	RECTANGULAR POWER CONNECTOR
Contact Arrangement	S0P3
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Durability	25 Cycles
EMI Shielded	NO
Empty Shell	YES
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	8.0064 N
Insulation Resistance	1000000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE66
MIL Conformance	NO
Mains Connector Rating	7A
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Option 2	LATCHING
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Polarization Key	POLARIZED
Rated Current (Signal)	7 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	3.96 mm
Termination Type	CRIMP
Total Number of Contacts	3
UL Flammability Code	94V-0
Withdrawl Force-Min	.5282 N
