171825-6 データシート

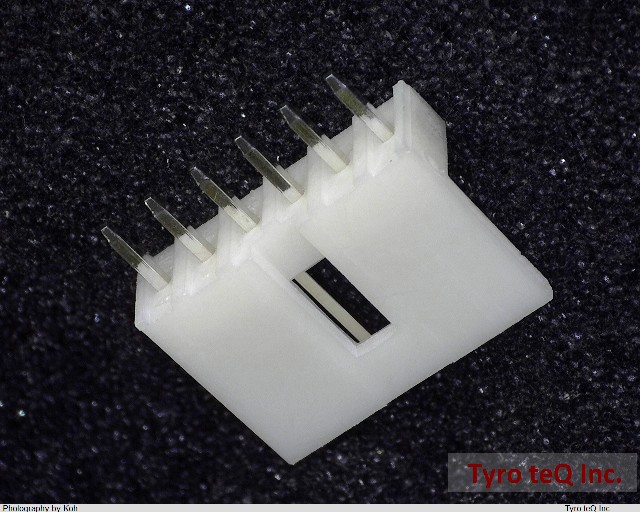

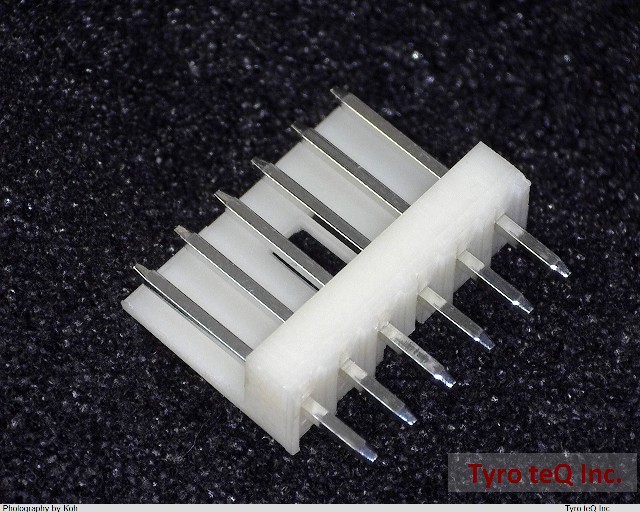

Name: 171825-6
Brand: AMP
SKU: 20497855-0000-0000-0000

171825-6 - AMP の商品詳細ページです。

4時間58分後以内に見積もり依頼を頂ければ、
11月05日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

171825-6 の詳細情報

型番	171825-6
メーカー	AMP
データシート
Additional Feature	LOW PROFILE
Board Mounting Option	SOLDERABLE RETENTION CLIPS
Body Breadth	0.209 inch
Body Depth	0.409 inch
Body Length	0.591 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Durability	25 Cycles
EMI Shielded	NO
Empty Shell	YES
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE66
JESD-609 Code	e3
MIL Conformance	NO
Mains Connector Rating	5A
Mating Contact Pitch	0.098 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 2	POLARIZED LOCK
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	95 Cel
Operating Temperature-Min	-20 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Panel Mount	NO
Plating Thickness	31.49u inch
Polarization Key	POLARIZED
Rated Current (Signal)	5 A
Rated Voltage	250 V
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.142 inch
Terminal Pitch	5 mm
