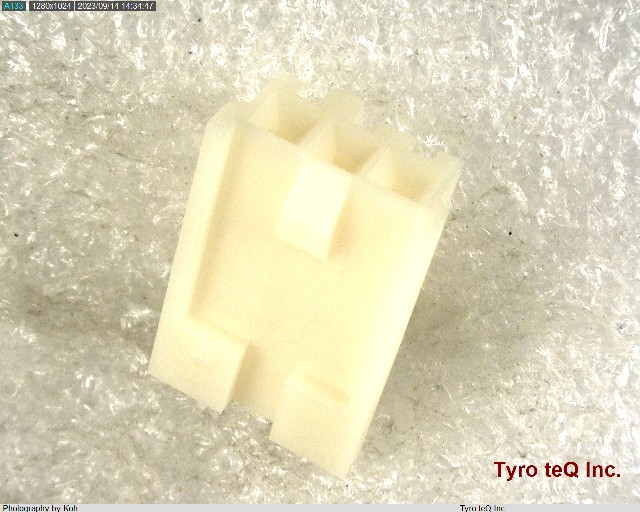

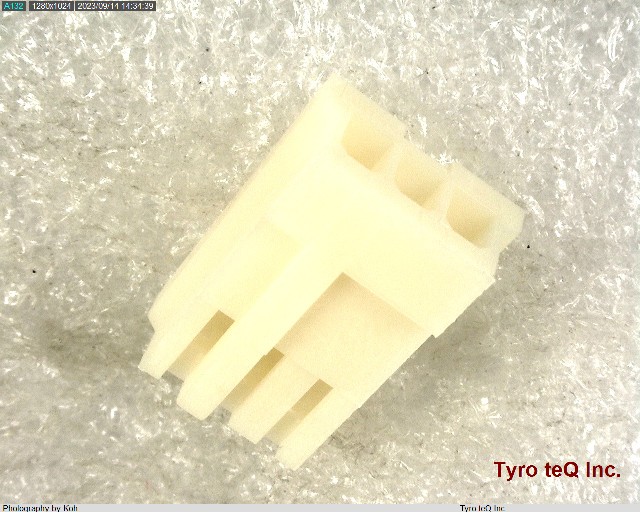

型番 | 171822-3 |
---|---|
メーカー | AMP |
データシート | |
Additional Feature | COMPATIBLE CONTACTS: 170263-1; 170262-1; 170205-1; 170204-1; 170263-2; 170262-2; 170205-2; 170204-2; 170263-3; 170262-4; 170205-3; 170204-4 |
Body Depth | 0.226 inch |
Body/Shell Style | RECEPTACLE |
Connector Type | BOARD CONNECTOR |
Contact Finish - Mating | NOT SPECIFIED |
Contact Finish - Termination | NOT APPLICABLE |
Contact Gender | FEMALE |
Contact Material | NOT SPECIFIED |
Contact Pattern | RECTANGULAR |
DIN Conformance | NO |
EMI Shielded | NO |
Empty Shell | YES |
Filter Feature | NO |
IEC Conformance | NO |
Insulation Resistance | 500000000 ohm |
Insulator Color | NATURAL |
Insulator Material | POLYAMIDE66 |
MIL Conformance | NO |
Mains Connector Rating | 2A |
Mating Information | MULTIPLE MATING PARTS AVAILABLE |
Mixed Contacts | NO |
Mounting Option 2 | LOCKING |
Mounting Type | CABLE |
Number Of Connectors | ONE |
Number of Ports | 1 |
Number of Rows Loaded | 1 |
Operating Temperature-Max | 95 Cel |
Operating Temperature-Min | -20 Cel |
Option | GENERAL PURPOSE |
Panel Mount | NO |
Rated Current (Signal) | 2 A |
Rated Voltage | 350 V |
Reference Standard | UL |
Terminal Pitch | 2.5 mm |
Termination Type | CRIMP |
Total Number of Contacts | 3 |
UL Flammability Code | 94V-0 |
