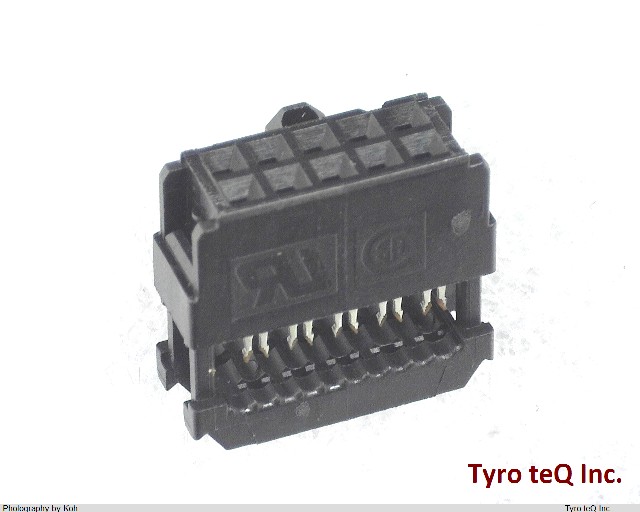

1658621-1 データシート

Name: 1658621-1
Brand: AMP
SKU: 20505534-0000-0000-0000

1658621-1 - AMP の商品詳細ページです。

２営業日以内に回答いたします

1658621-1 の詳細情報

型番	1658621-1
メーカー	AMP
データシート
Additional Feature	AMP-LATCH
Body Breadth	0.295 inch
Body Depth	0.597 inch
Body Length	0.68 inch
Body/Shell Style	RECEPTACLE
Cable Types	RIBBON
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	GOLD (15) OVER NICKEL (50)/GOLD FLASH (15) OVER PALLADIUM NICKEL (15)
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	DUAL PRONG
DIN Conformance	NO
Durability	75 Cycles
EMI Shielded	NO
Empty Shell	YES
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.336 N
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYETHYLENE
JESD-609 Code	e3
MIL Conformance	NO
Mains Connector Rating	1A
Manufacturer Series	1658621
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number of Ports	1
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-65 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Plating Thickness	15u inch
Polarization Key	POLARIZED
Rated Current (Signal)	1 A
Reference Standard	CSA, UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	IDC
Total Number of Contacts	10
UL Flammability Code	94V-0
