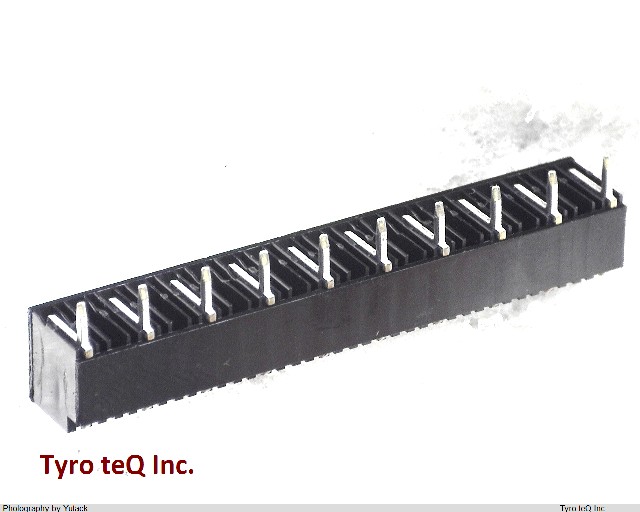

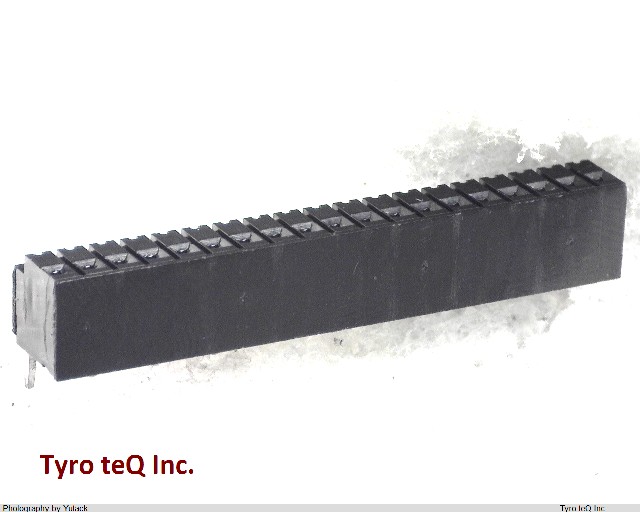

型番 | 163685-8 |
---|---|
メーカー | AMP |
Additional Feature | TOP ENTRY |
Body Depth | 0.3 inch |
Body/Shell Style | RECEPTACLE |
Connector Type | BOARD CONNECTOR |
Contact Finish - Mating | NOT SPECIFIED |
Contact Gender | FEMALE |
Contact Material | NOT SPECIFIED |
Contact Pattern | RECTANGULAR |
DIN Conformance | NO |
EMI Shielded | NO |
Empty Shell | YES |
Filter Feature | NO |
IEC Conformance | NO |
Insulator Color | GRAY |
MIL Conformance | NO |
Mains Connector Rating | 5A |
Mixed Contacts | NO |
Mounting Style | STRAIGHT |
Mounting Type | BOARD |
Number Of Connectors | ONE |
Number of Ports | 1 |
Number of Rows Loaded | 1 |
Operating Temperature-Max | 85 Cel |
Operating Temperature-Min | -40 Cel |
Option | GENERAL PURPOSE |
Panel Mount | NO |
Plating Thickness | 120u inch |
Rated Current (Signal) | 5 A |
Reference Standard | UL |
Terminal Length | 0.126 inch |
Terminal Pitch | 5 mm |
Termination Type | SOLDER |
Total Number of Contacts | 10 |
UL Flammability Code | 94V-1 |
