1-480702-0 データシート

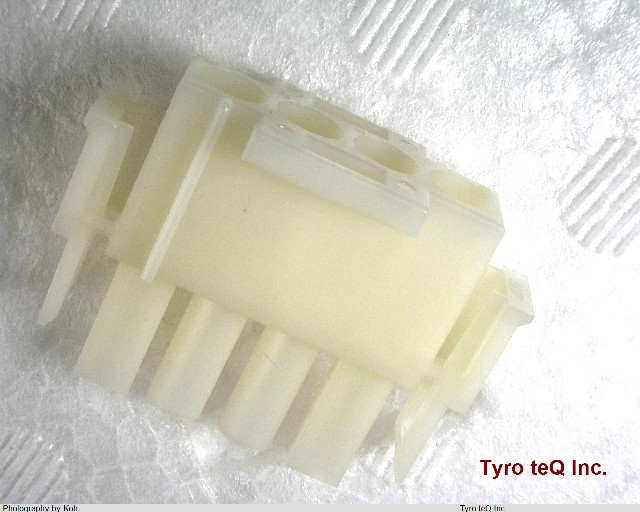

Name: 1-480702-0
Brand: AMP
SKU: 20501333-0000-0000-0000

1-480702-0 - AMP の商品詳細ページです。

２営業日以内に回答いたします

1-480702-0 の詳細情報

型番	1-480702-0
メーカー	AMP
データシート
Additional Feature	MATE-N-LOK
Body Breadth	0.58 inch
Body Depth	1.08 inch
Body Length	1.05 inch
Body/Shell Style	PLUG
Connector Type	COMBINATION LINE CONNECTOR
Contact Arrangement	S0P4
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Style	RND PIN-SKT
DIN Conformance	NO
Durability	50 Cycles
EMI Shielded	NO
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mains Connector Rating	115/230VAC
Manufacturer Series	480702
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Option 2	LONG LATCH
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Reference Standard	CSA, UL, V
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	6.35 mm
Termination Type	CRIMP
Total Number of Contacts	4
UL Flammability Code	94V-2
