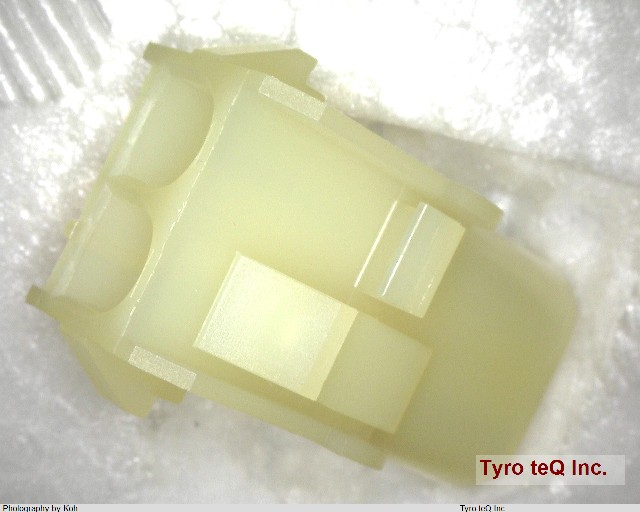

1-480699-0 データシート

Name: 1-480699-0
Brand: AMP
SKU: 400040619-0000-0000-0000

1-480699-0 - AMP の商品詳細ページです。

２営業日以内に回答いたします

1-480699-0 の詳細情報

型番	1-480699-0
メーカー	AMP
データシート
Additional Feature	MATE-N-LOK
Body Breadth	0.52 inch
Body Depth	1.08 inch
Body Length	0.55 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Arrangement	S0P2
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Style	RND PIN-SKT
DIN Conformance	NO
Durability	50 Cycles
EMI Shielded	NO
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	13.344 N
Insulation Diameter-Min	0.032 inch
Insulation Resistance	1000000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mains Connector Rating	115/230VAC
Manufacturer Series	480699
Mating Contact Pitch	0.25 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Polarization Key	POLARIZED HOUSING
Reference Standard	CSA, UL, V
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	6.35 mm
Termination Type	CRIMP
Total Number of Contacts	2
UL Flammability Code	94V-2
Wire Size-Max	10 AWG
Wire Size-Min	30 AWG
