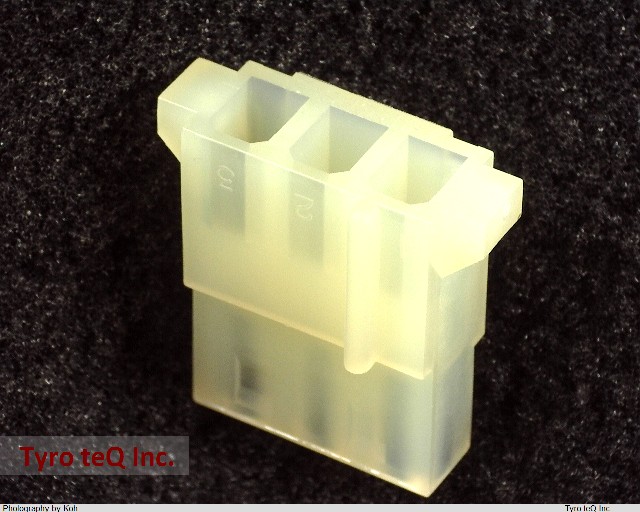

1-480303-0 Amp

1-480303-0 - AMP の商品詳細ページです。

1
1-480303-0
  • 1-480303-0
  • 1-480303-0
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

1-480303-0 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番1-480303-0
メーカーAMP
Additional Feature MATE-N-LOK
Body Breadth 0.29 inch
Body Depth 0.85 inch
Body Length 0.83 inch
Body/Shell Style PLUG
Connector Type COMBINATION LINE CONNECTOR
Contact Arrangement S0P3
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Style RND PIN-SKT
DIN Conformance NO
Durability 50 Cycles
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulation Resistance 500000000 ohm
Insulator Color NATURAL
Insulator Material POLYAMIDE
MIL Conformance NO
Mains Connector Rating 115/230VAC
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type CABLE
Number Of Connectors ONE
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 Cel
Operating Temperature-Min 0 Cel
Option GENERAL PURPOSE
Panel Mount NO
Rated Voltage 250 V
Reference Standard CSA, UL
Reliability COMMERCIAL
Shell Material POLYAMIDE
Sub Category Headers and Edge Type Connectors
Terminal Pitch 5.08 mm
Termination Type CRIMP
Total Number of Contacts 3
UL Flammability Code 94V-2
Withdrawl Force-Min 3.1136 N
