1-353082-2 Amp

1-353082-2 - AMP の商品詳細ページです。

1

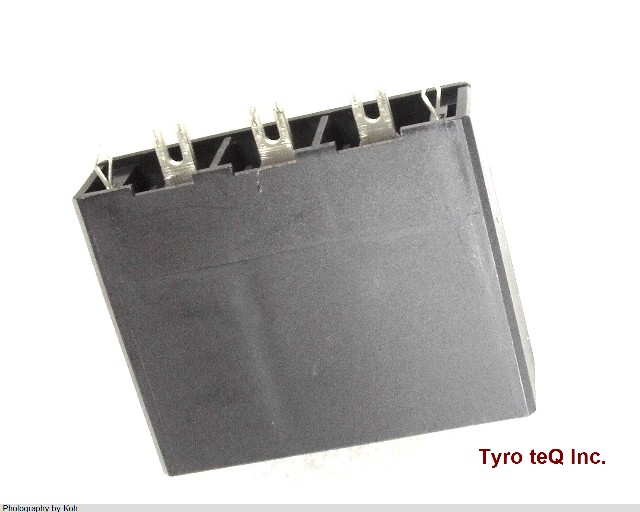

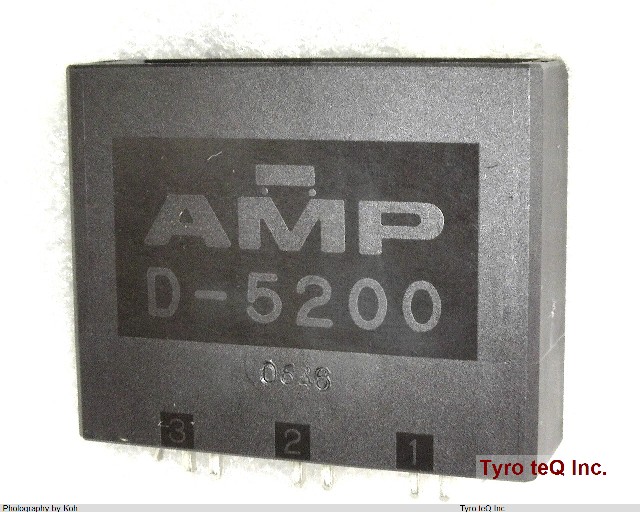

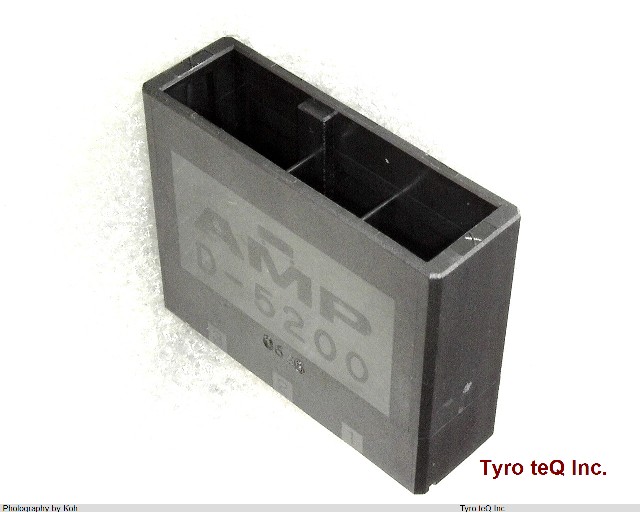

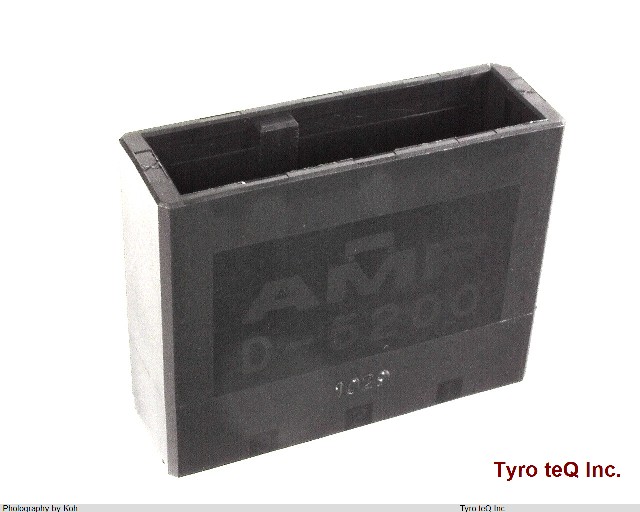

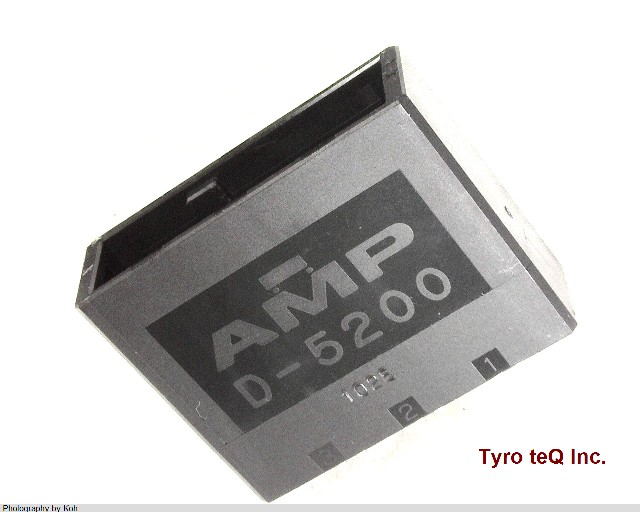

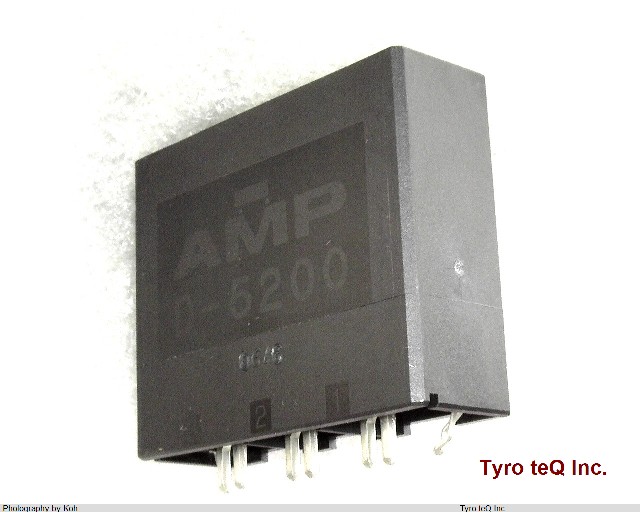

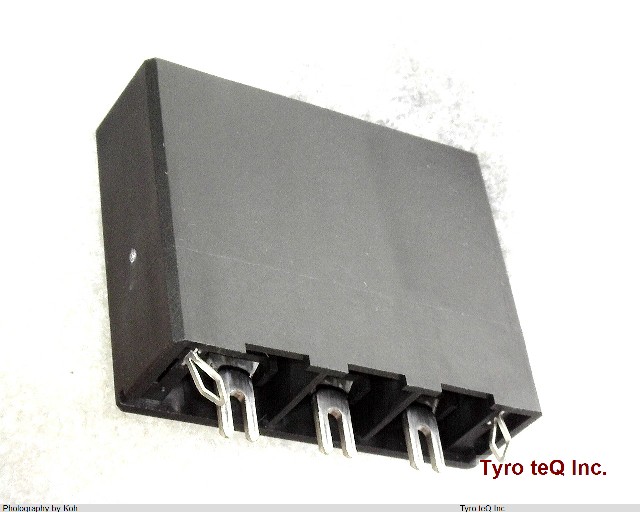

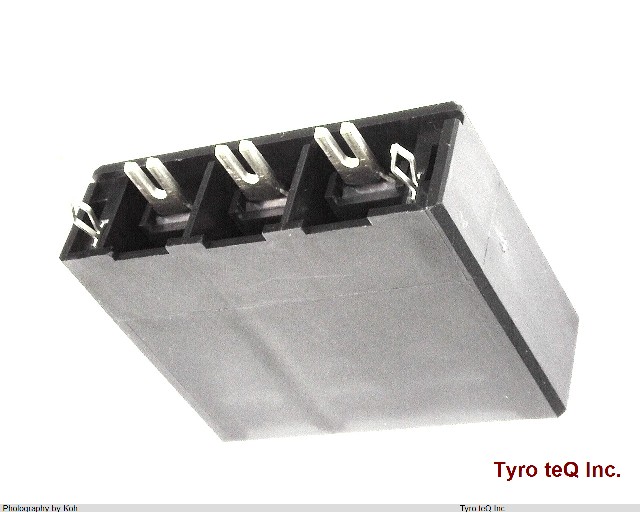

1-353082-2
  • 1-353082-2
  • 1-353082-2
  • 1-353082-2
  • 1-353082-2
  • 1-353082-2
  • 1-353082-2
  • 1-353082-2
  • 1-353082-2
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

1-353082-2 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番1-353082-2
メーカーAMP
Additional Feature POLARIZATION AVAILABLE
Board Mounting Option SOLDERABLE RETENTION CLIPS
Body Breadth 0.488 inch
Body Depth 1.26 inch
Body Length 1.556 inch
Body/Shell Style PLUG
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 2 mohm
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 9.7856 N
Insulation Resistance 1000000000 ohm
Insulator Color BLACK
Insulator Material GLASS FILLED POLYESTER
MIL Conformance NO
Mains Connector Rating 30A
Mating Contact Pitch 0.4 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 Cel
Operating Temperature-Min -55 Cel
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Panel Mount NO
Plating Thickness 15u inch
Polarization Key POLARIZED
Rated Current (Signal) 30 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.15 inch
Terminal Pitch 10.16 mm
Termination Type SOLDER
Total Number of Contacts 3
UL Flammability Code 94V-0
Withdrawl Force-Min 1.946 N
会社名称TE Connectivity Ltd.
設立1941
所在地Rheinstrasse 20 Ch-8200 Schaffhausen Switzerland
URLhttp://www.te.com/
