1-316130-2 データシート

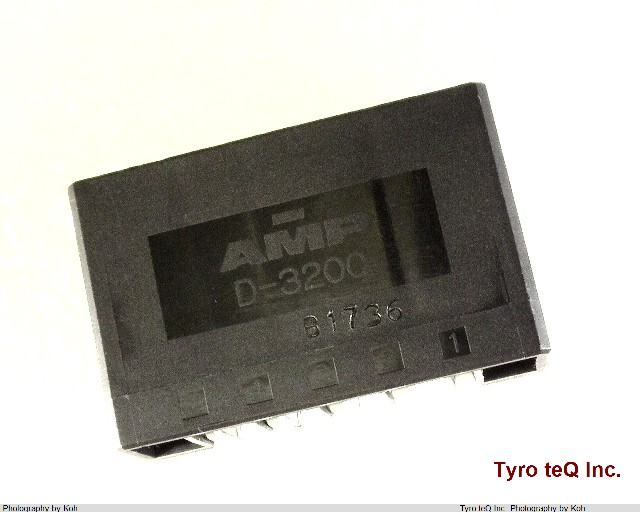

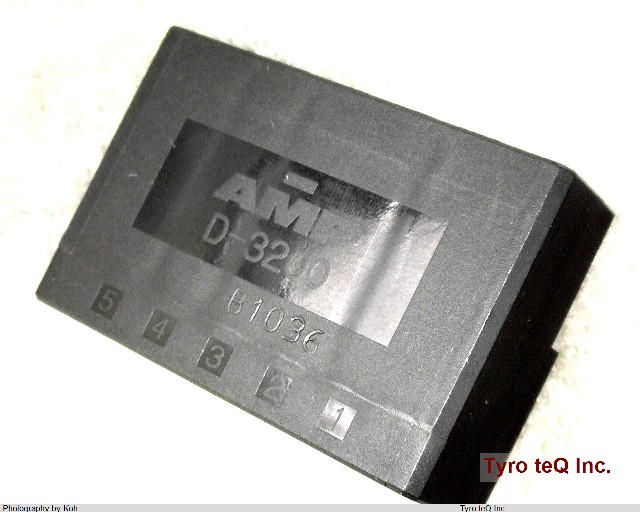

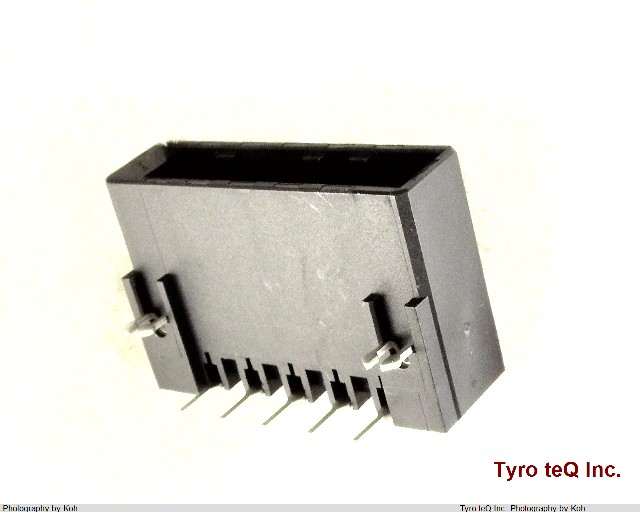

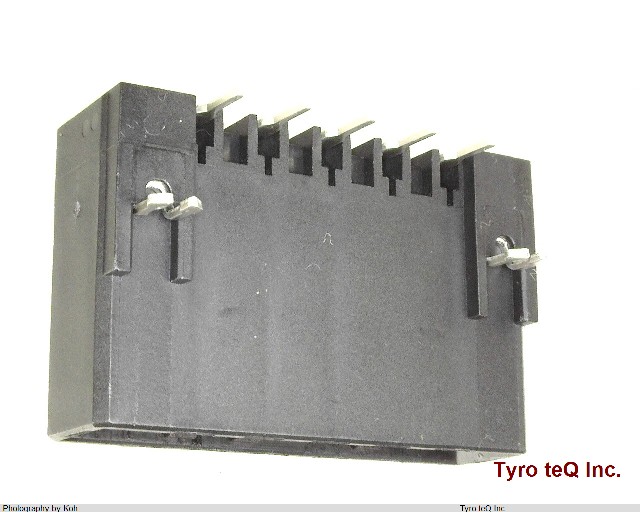

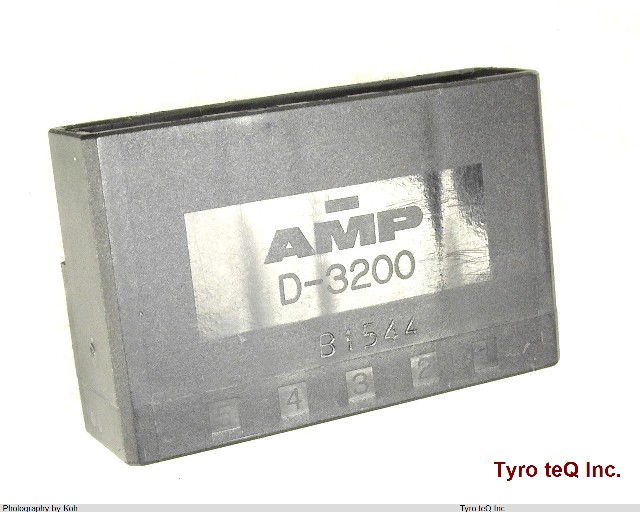

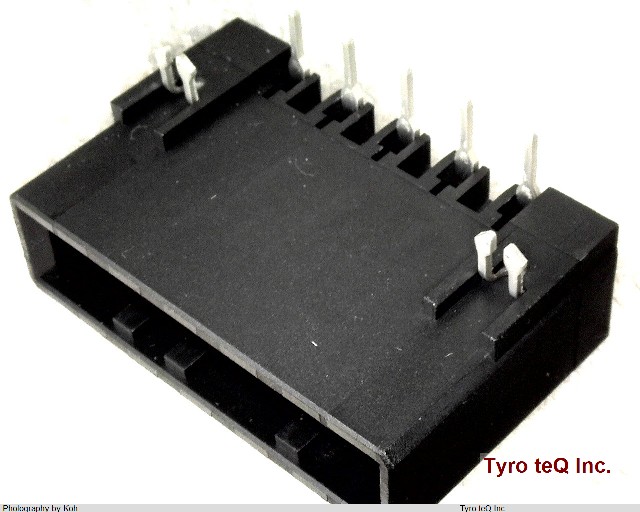

Name: 1-316130-2
Brand: AMP
SKU: 20496453-0000-0000-0000

1-316130-2 - AMP の商品詳細ページです。

２営業日以内に回答いたします

1-316130-2 の詳細情報

型番	1-316130-2
メーカー	AMP
データシート
Board Mounting Option	SOLDERABLE RETENTION CLIPS
Body Breadth	0.427 inch
Body Depth	0.87 inch
Body Length	1.351 inch
Body/Shell Style	PLUG
Connector Type	RECTANGULAR POWER CONNECTOR
Contact Arrangement	S0P5
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Style	BLADE PIN-SKT
DIN Conformance	NO
Durability	500 Cycles
EMI Shielded	NO
Empty Shell	YES
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	9.7856 N
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYESTER
MIL Conformance	NO
Mains Connector Rating	15A
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Option 2	LATCHING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Plating Thickness	15u inch
Polarization Key	POLARIZED
Rated Current (Signal)	15 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.149 inch
Terminal Pitch	5.08 mm
Termination Type	SOLDER
Total Number of Contacts	5
UL Flammability Code	94V-0
