1-316081-2 Amp

1-316081-2 - AMP の商品詳細ページです。

1

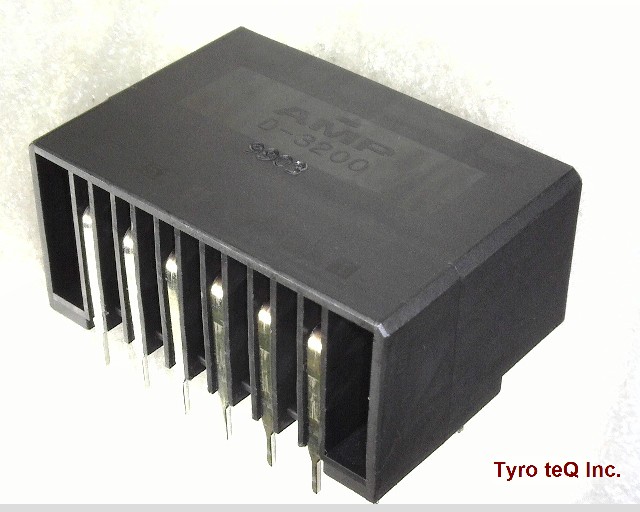

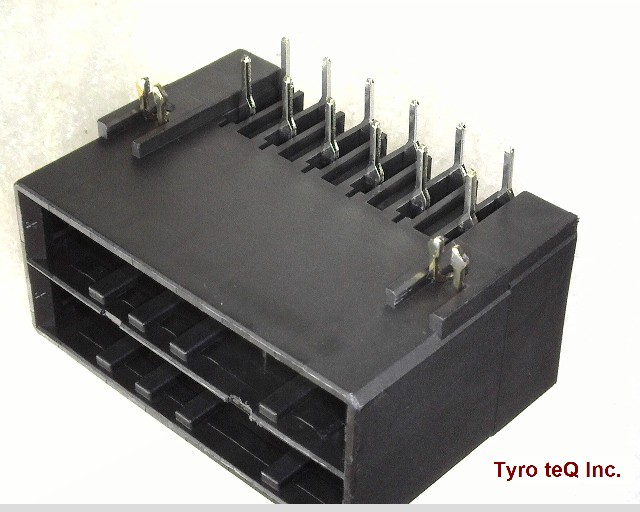

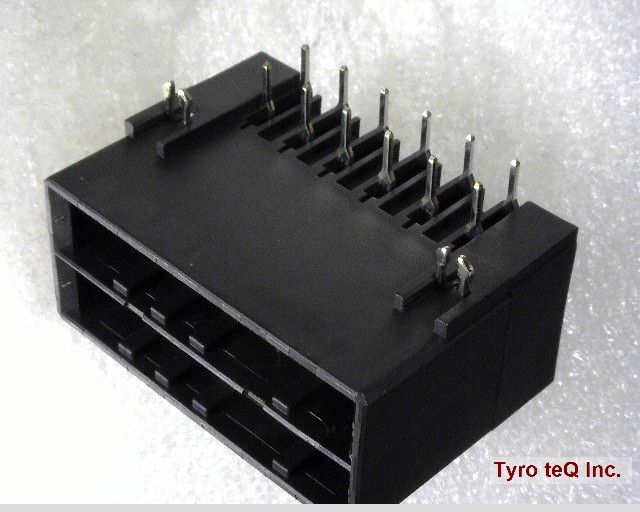

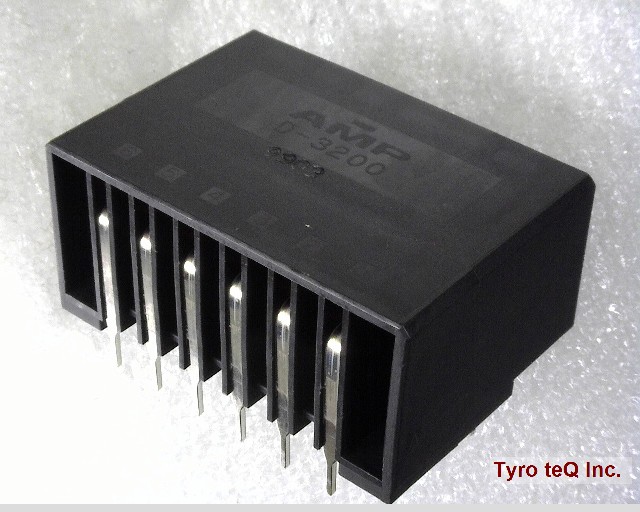

1-316081-2
  • 1-316081-2
  • 1-316081-2
  • 1-316081-2
  • 1-316081-2
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

1-316081-2 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番1-316081-2
メーカーAMP
Additional Feature POLARIZED
Board Mounting Option SOLDERABLE RETENTION CLIPS
Body Breadth 0.668 inch
Body Depth 1.07 inch
Body Length 1.551 inch
Body/Shell Style RECEPTACLE
Connector Type RECTANGULAR POWER CONNECTOR
Contact Arrangement S0P12
Contact Finish - Mating NOT SPECIFIED
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Resistance 5 mohm
DIN Conformance NO
Durability 100 Cycles
EMI Shielded NO
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 9.7856 N
Insulation Resistance 1000000000 ohm
Insulator Color BLACK
Insulator Material GLASS FILLED POLYESTER
MIL Conformance NO
Mains Connector Rating 8A
Manufacturer Series 316081
Mating Information 1-917659-6
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max 105 Cel
Operating Temperature-Min -55 Cel
Option GENERAL PURPOSE
Panel Mount NO
Plating Thickness 15u inch
Polarization Key POLARIZED
Rated Current (Signal) 8 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.149 inch
Terminal Pitch 5.08 mm
Termination Type SOLDER
Total Number of Contacts 12
UL Flammability Code 94V-0
Withdrawl Force-Min .5004 N
会社名称TE Connectivity Ltd.
設立1941
所在地Rheinstrasse 20 Ch-8200 Schaffhausen Switzerland
URLhttp://www.te.com/

1-316081-2のレビュー

1-316081-2 のご注文について
