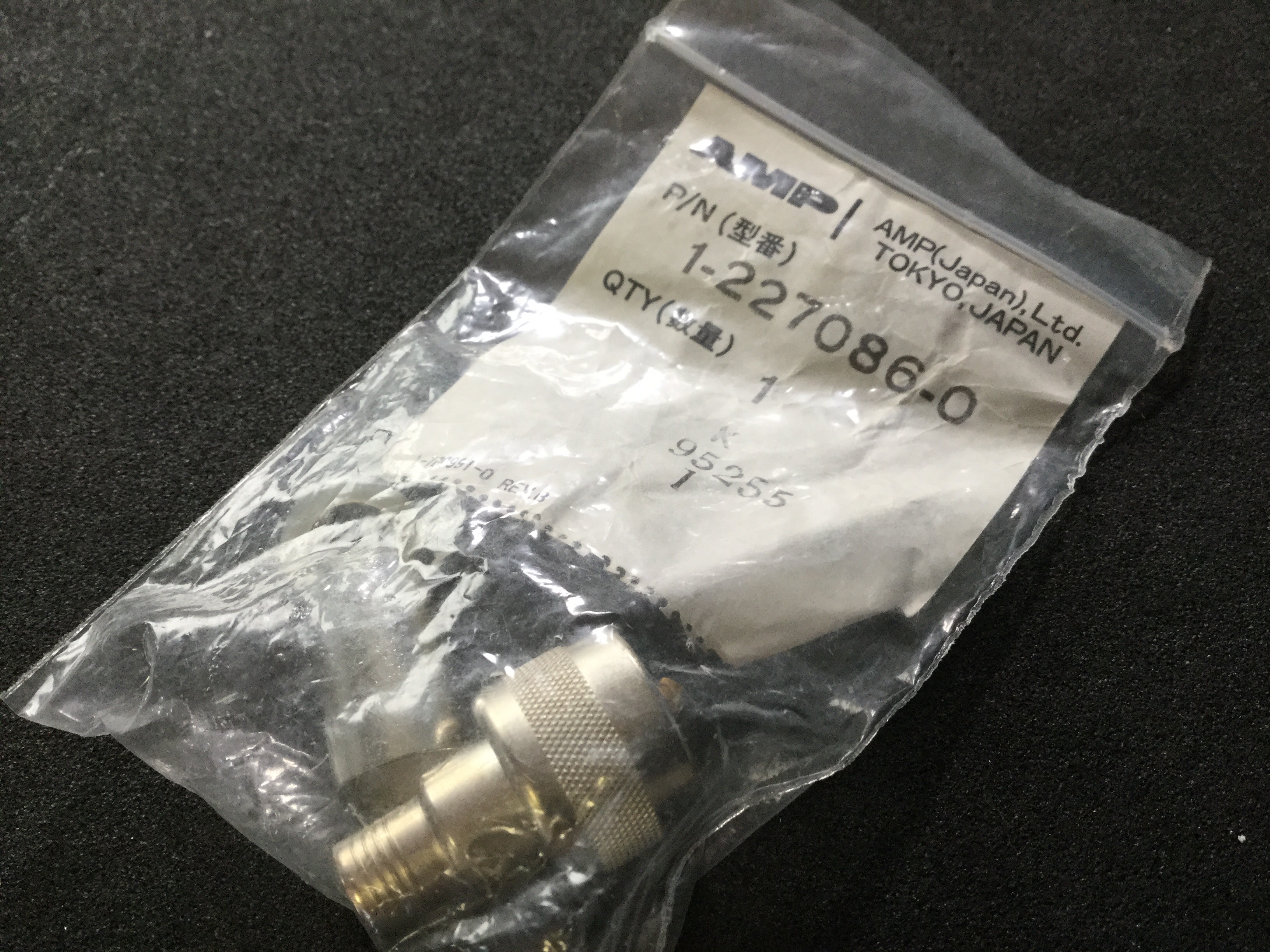

1-227086-0

Name: 1-227086-0
Brand: AMP
SKU: 20504689-0000-0000-0000

1-227086-0 - AMP の商品詳細ページです。

２営業日以内に回答いたします

1-227086-0 の詳細情報

型番	1-227086-0
メーカー	AMP
Additional Feature	APPLICABLE CABLES: RG 8/U; RG 8A/U; RG 213/U, INSERTION LOSS MAX AT 10GHZ
Body Diameter	0.75 inch
Body/Shell Style	PLUG
Cable Types	RG 213, RG 8
Characteristic Impedance	50 ohm
Connector Type	RF N CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Resistance	1 mohm
Contact Style	COAX
Coupling Type	THREADED
DIN Conformance	NO
Durability	500 Cycles
EMI Shielded	NO
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Loss	0.15 dB
Insulation Resistance	5000000000 ohm
Insulator Material	FLUOROPOLYMER
MIL Conformance	NO
Manufacturer Series	N
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Ports	1
Operating Frequency-Max	11 GHz
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-65 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	BRASS
Sub Category	RF N Connectors
Termination Type	CRIMP
Total Number of Contacts	1
VSWR	1.3
