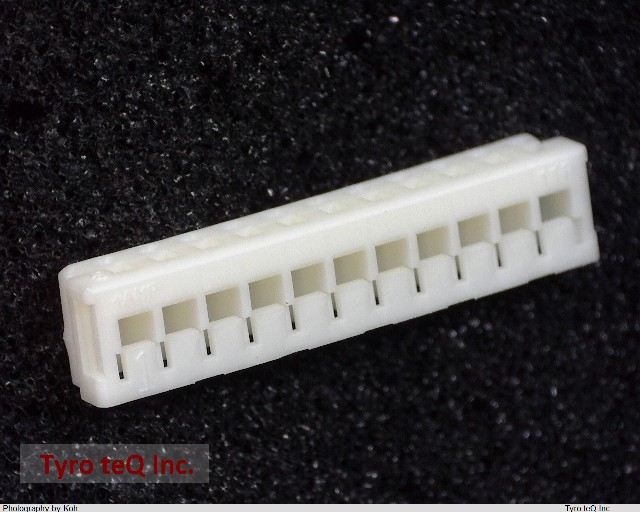

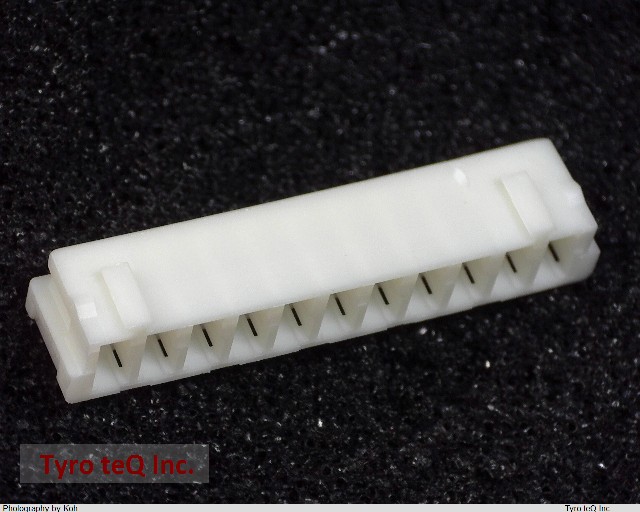

1-175778-1
  • 1-175778-1
  • 1-175778-1
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

1-175778-1 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番1-175778-1
メーカーAMP
データシートProduct_list_pdf
Additional Feature COMPATIBLE CONTACTS: 1-175102-1; 1-175161-1
Body Breadth 0.2 inch
Body Depth 0.157 inch
Body Length 0.945 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mohm
Contact Style RND PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 1000VAC V
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 ohm
Insulator Color NATURAL
Insulator Material POLYAMIDE66
MIL Conformance NO
Mains Connector Rating 115/230VAC
Mating Contact Pitch 0.079 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Type CABLE
Number Of Connectors ONE
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 Cel
Operating Temperature-Min -30 Cel
Option GENERAL PURPOSE
Panel Mount NO
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 4 A
Rated Voltage 125 V
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Pitch 2 mm
Termination Type CRIMP
Total Number of Contacts 11
UL Flammability Code 94V-0
Wire Size-Max 22 AWG
Wire Size-Min 30 AWG
