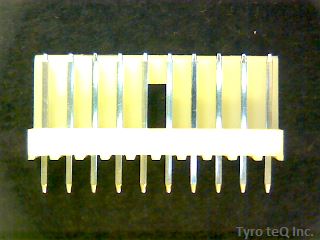

1-171825-0

1-171825-0 - AMP の商品詳細ページです。

1

178時間12分後 以内に見積もり依頼を頂ければ、
05月08日(水) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

1-171825-0 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番1-171825-0
メーカーAMP
データシートProduct_list_pdf
Additional Feature LOW PROFILE
Board Mounting Option SOLDERABLE RETENTION CLIPS
Body Breadth 0.209 inch
Body Depth 0.409 inch
Body Length 0.984 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination Tin (Sn)
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mohm
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability 25 Cycles
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulation Resistance 500000000 ohm
Insulator Color NATURAL
Insulator Material POLYAMIDE66
JESD-609 Code e3
MIL Conformance NO
Mains Connector Rating 5A
Mating Contact Pitch 0.098 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 2 POLARIZED LOCK
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 95 Cel
Operating Temperature-Min -20 Cel
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Panel Mount NO
Plating Thickness 31.49u inch
Polarization Key POLARIZED
Rated Current (Signal) 5 A
Rated Voltage 250 V
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.142 inch
Terminal Pitch 5 mm
