1-1123722-5 データシート Amp

1-1123722-5 - AMP の商品詳細ページです。

1

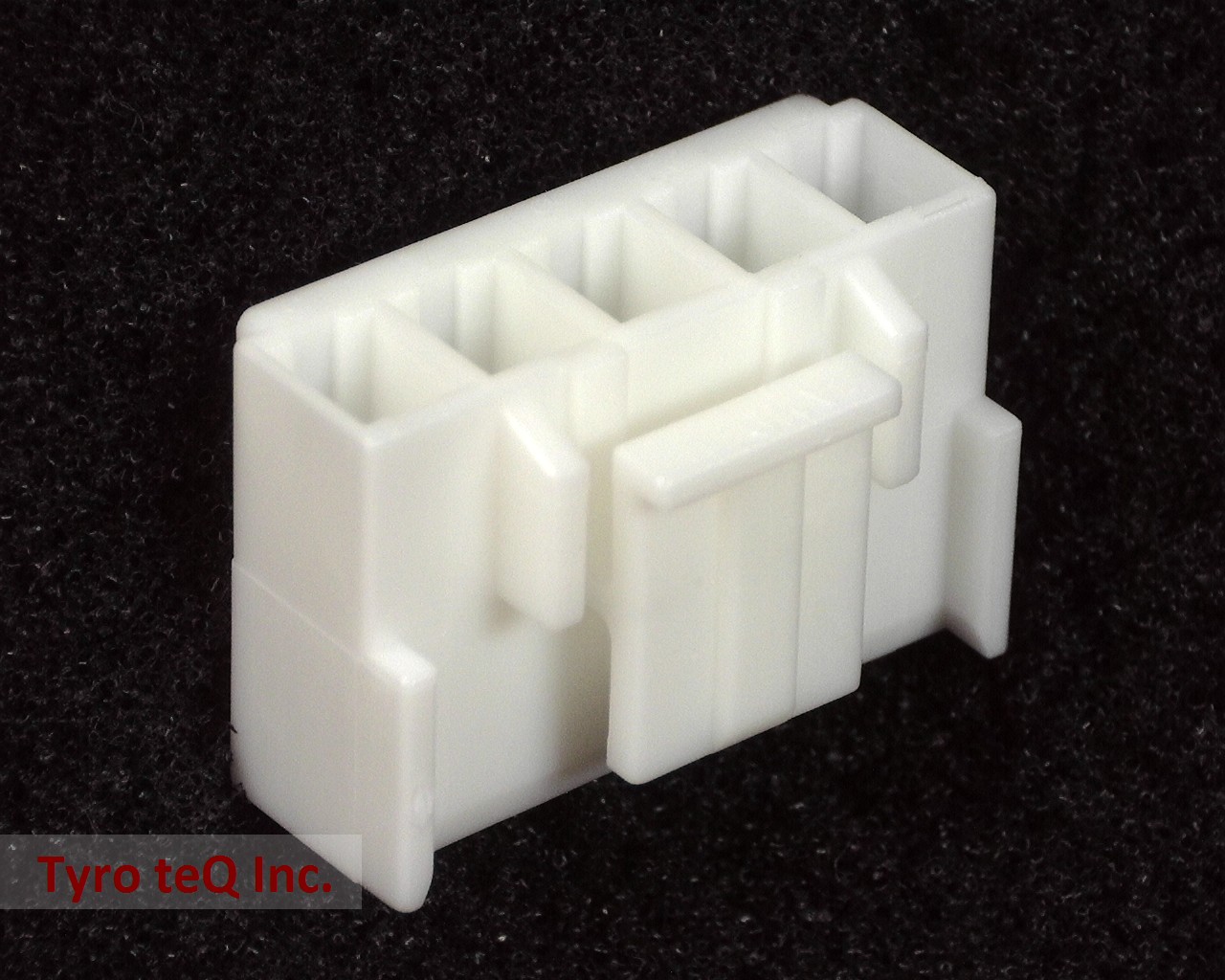

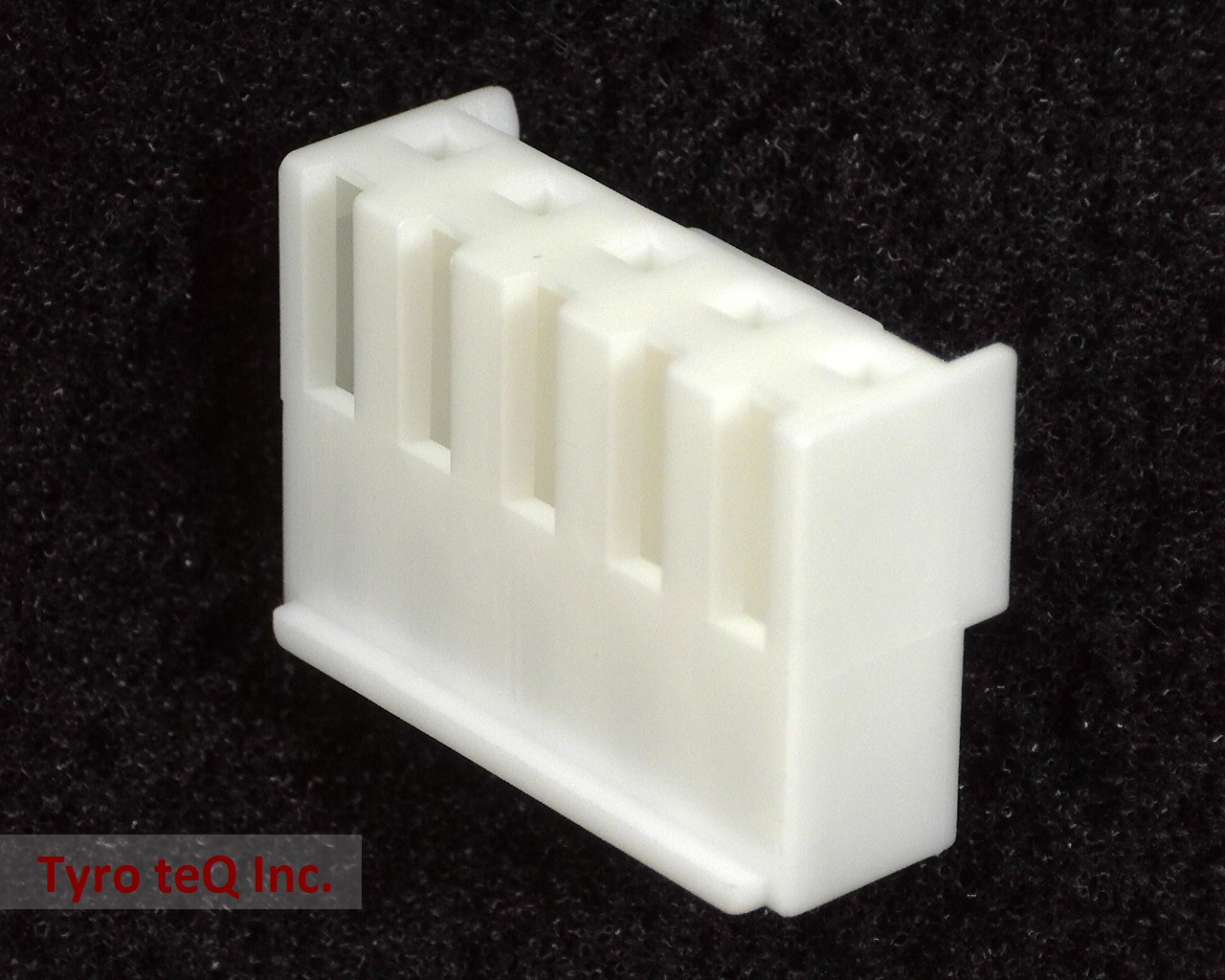

1-1123722-5
  • 1-1123722-5
  • 1-1123722-5
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

1-1123722-5 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番1-1123722-5
メーカーAMP
データシートProduct_list_pdf
Additional Feature COMPATIBLE CONTACTS: 1123721-1; 1318912-1; 1123721-2
Body Breadth 0.524 inch
Body Depth 0.413 inch
Body Length 0.777 inch
Body/Shell Style PLUG
Connector Type RECTANGULAR POWER CONNECTOR
Contact Arrangement S0P5
Contact Finish - Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mohm
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 1500VAC V
Durability 50 Cycles
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 7.1168 N
Insulation Resistance 1000000000 ohm
Insulator Color NATURAL
Insulator Material NYLON66
MIL Conformance NO
Mains Connector Rating 115/230VAC
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Option 2 LATCHING
Mounting Style STRAIGHT
Mounting Type CABLE
Number Of Connectors ONE
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 Cel
Operating Temperature-Min -30 Cel
Option GENERAL PURPOSE
Panel Mount NO
Rated Current (Signal) 8 A
Rated Voltage 250 V
Reference Standard UL
Reliability COMMERCIAL
Shell Material POLYAMIDE66
Sub Category Headers and Edge Type Connectors
Terminal Pitch 3.95 mm
Termination Type CRIMP
Total Number of Contacts 5
UL Flammability Code 94V-0
Withdrawl Force-Min .973 N
会社名称TE Connectivity Ltd.
設立1941
所在地Rheinstrasse 20 Ch-8200 Schaffhausen Switzerland
URLhttp://www.te.com/
