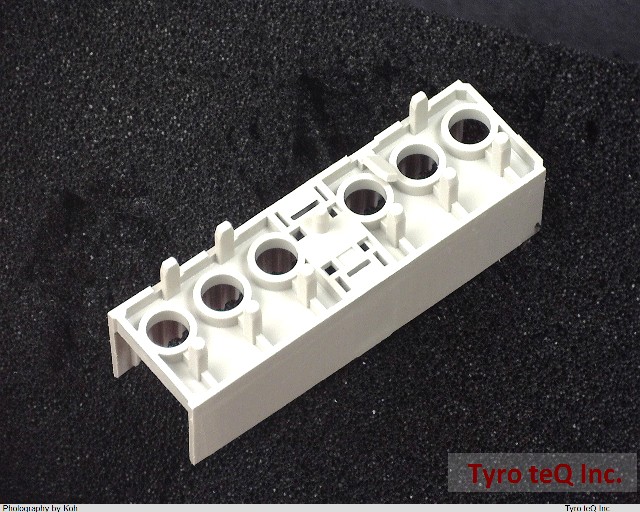

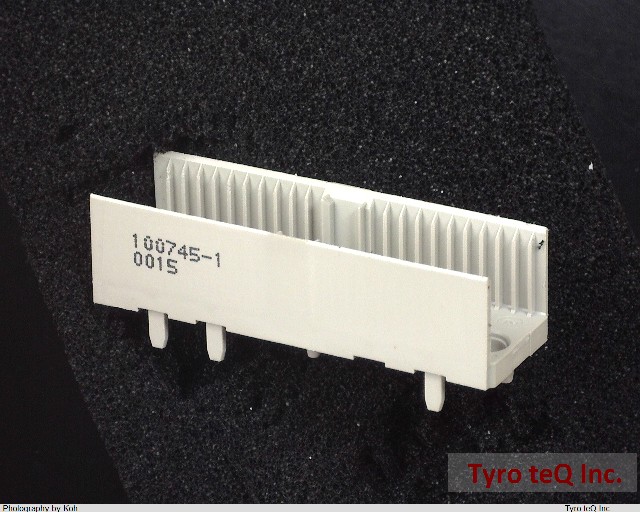

100745-1 データシート

Name: 100745-1
Brand: AMP
SKU: 20505309-0000-0000-0000

100745-1 - AMP の商品詳細ページです。

２営業日以内に回答いたします

100745-1 の詳細情報

型番	100745-1
メーカー	AMP
データシート
Additional Feature	Z-PACK, POLARIZED
Body Breadth	0.606 inch
Body Depth	0.531 inch
Body Length	1.965 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Arrangement	S0C6
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Resistance	20 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Durability	125 Cycles
EMI Shielded	NO
Empty Shell	YES
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	GLASS FILLED POLYESTER
MIL Conformance	NO
Mains Connector Rating	115/230VAC
Manufacturer Series	100745
Mating Information	100746-1
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.173 inch
Terminal Pitch	7.5 mm
Termination Type	SOLDER
Total Number of Contacts	6
UL Flammability Code	94V-0
Withdrawl Force-Min	.15012 N
