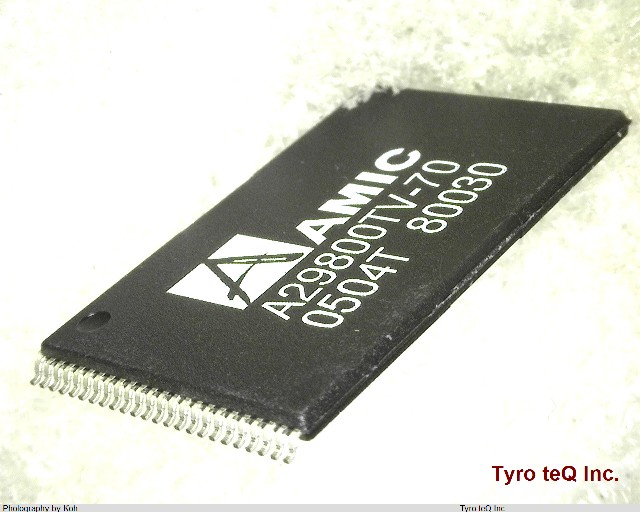

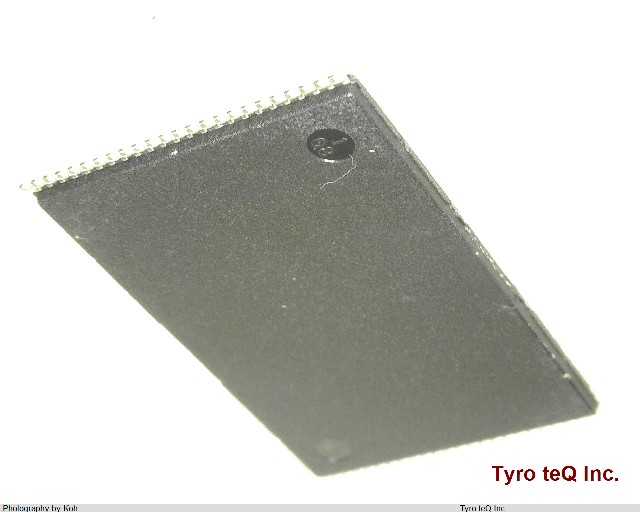

A29800TV-70
A29800TV-70

A29800TV-70 - AMIC の商品詳細ページです。

1

8時間50分後 以内に見積もり依頼を頂ければ、
04月25日(木) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

A29800TV-70 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番A29800TV-70
メーカーAMIC
データシートProduct_list_pdf
Access Time-Max 70 ns
Additional Feature DATA RETENTION TIME @ 150 DEGREE CENTIGRADE
Alternate Memory Width 8
Boot Block TOP
Command User Interface YES
Data Polling YES
Data Retention Time-Min 10
Endurance 100000 Write/Erase Cycles
JESD-30 Code R-PDSO-G48
Length 18.4 mm
Memory Density 8388608 bit
Memory IC Type FLASH
Memory Width 16
Number of Functions 1
Number of Sectors/Size 1,2,1,15
Number of Terminals 48
Number of Words 524288 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min -40 Cel
Organization 512KX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP48,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial PARALLEL
Power Supplies 5 V
Programming Voltage 5 V
Qualification Status Not Qualified
Ready/Busy YES
Seated Height-Max 1.2 mm
Sector Size 16K,8K,32K,64K Words
Standby Current-Max 5.0E-6 Amp
Sub Category Flash Memories
Supply Current-Max 0.04 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Toggle Bit YES
Type NOR TYPE
Width 12 mm
