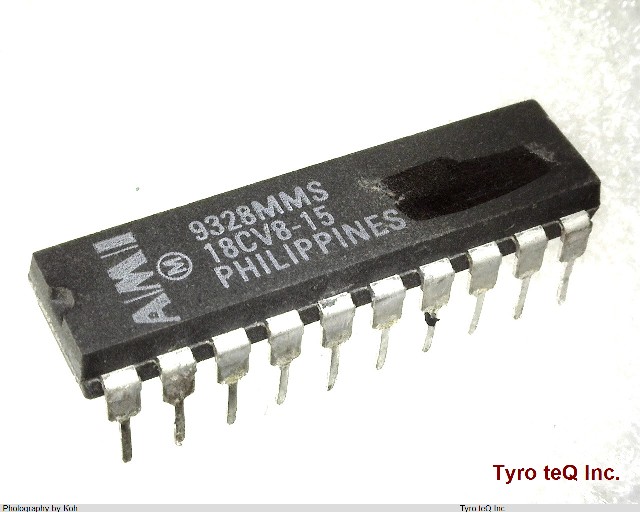

PEEL18CV8P-15

Name: PEEL18CV8P-15
Brand: AMI
SKU: 260240170-0000-0000-0000

PEEL18CV8P-15 - AMI の商品詳細ページです。

２営業日以内に回答いたします

PEEL18CV8P-15 の詳細情報

型番	PEEL18CV8P-15
メーカー	AMI
Additional Feature	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
Architecture	PAL-TYPE
Clock Frequency-Max	41.6 MHz
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Length	24.8285 mm
Number of Dedicated Inputs	9
Number of I/O Lines	8
Number of Inputs	18
Number of Outputs	8
Number of Product Terms	74
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	9 DEDICATED INPUTS, 8 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Programmable Logic Type	EE PLD
Propagation Delay	15 ns
Qualification Status	Not Qualified
Seated Height-Max	5.461 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
