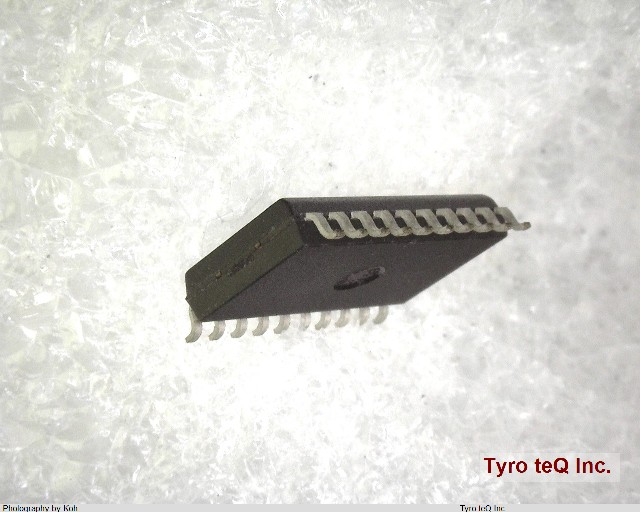

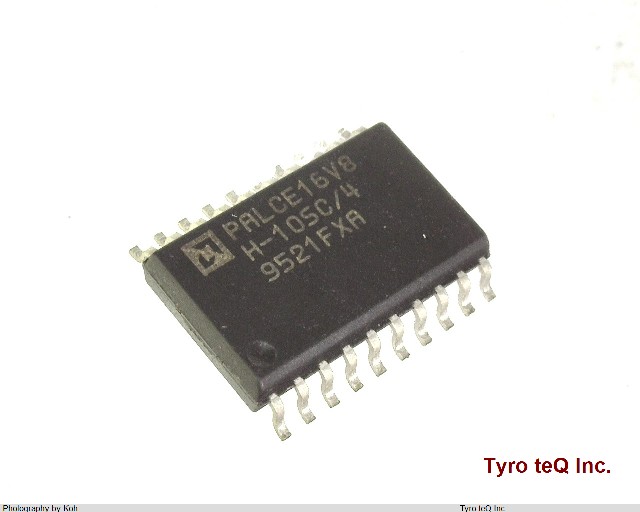

PALCE16V8H-10SC/4 データシート

Name: PALCE16V8H-10SC/4
Brand: AMD
SKU: 260010659-0000-0000-0000

PALCE16V8H-10SC/4 - AMD の商品詳細ページです。

２営業日以内に回答いたします

PALCE16V8H-10SC/4 の詳細情報

型番	PALCE16V8H-10SC/4
メーカー	AMD
データシート
Additional Feature	PROGRAMMABLE OUTPUT POLARITY; 8 MACROCELLS; REGISTER PRELOAD; SHARED INPUT/CLOCK; 1 EXTERNAL CLOCK
Architecture	PAL-TYPE
Clock Frequency-Max	66.7 MHz
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	12.8 mm
Number of Dedicated Inputs	8
Number of I/O Lines	8
Number of Inputs	18
Number of Outputs	8
Number of Product Terms	64
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	8 DEDICATED INPUTS, 8 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	5 V
Programmable Logic Type	EE PLD
Propagation Delay	10 ns
Qualification Status	Not Qualified
Seated Height-Max	2.6416 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	7.5 mm
