PAL22V10-7PC データシート Amd

PAL22V10-7PC
PAL22V10-7PC

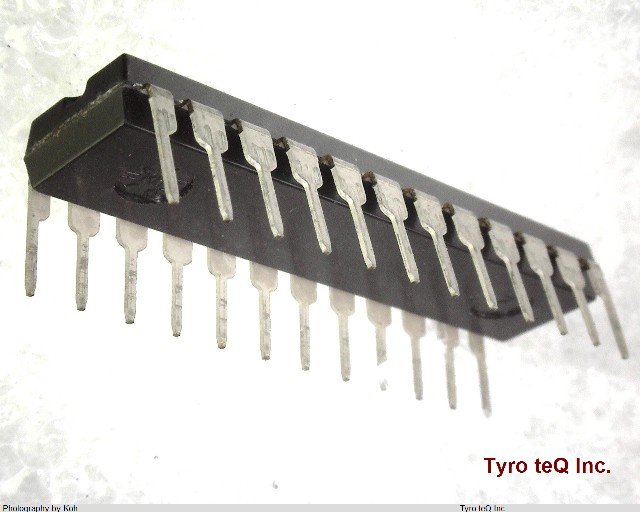

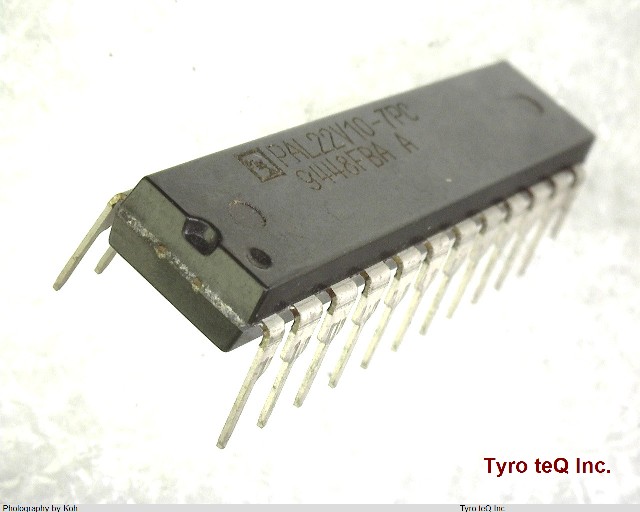

PAL22V10-7PC - AMD の商品詳細ページです。

1

29時間53分後 以内に見積もり依頼を頂ければ、
05月21日(火) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

PAL22V10-7PC の詳細情報

  • 仕様・詳細
  • メーカー情報
型番PAL22V10-7PC
メーカーAMD
データシートProduct_list_pdf
Additional Feature 10 MACROCELLS; REGISTER PRELOAD; SHARED INPUT/CLOCK; 1 EXTERNAL CLOCK
Architecture PAL-TYPE
Clock Frequency-Max 91 MHz
JESD-30 Code R-PDIP-T24
JESD-609 Code e0
Length 30.734 mm
Number of Dedicated Inputs 11
Number of I/O Lines 10
Number of Inputs 22
Number of Outputs 10
Number of Product Terms 132
Number of Terminals 24
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Organization 11 DEDICATED INPUTS, 10 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP24,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies 5 V
Programmable Logic Type OT PLD
Propagation Delay 7.5 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Sub Category Programmable Logic Devices
Supply Voltage-Max 5.25 V
Supply Voltage-Min 4.75 V
Supply Voltage-Nom 5 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
会社名称Advanced Micro Devices, Inc.
設立1969
所在地One AMD Place P.O. Box 3453 Sunnyvale, CA 94088-3453，USA
URLhttp://www.amd.com/
