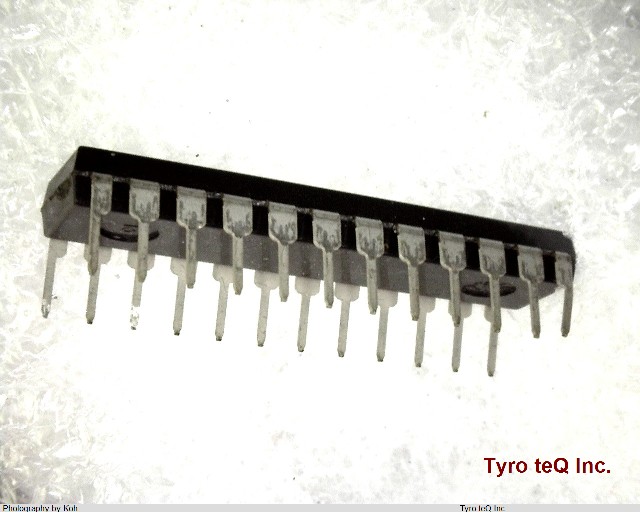

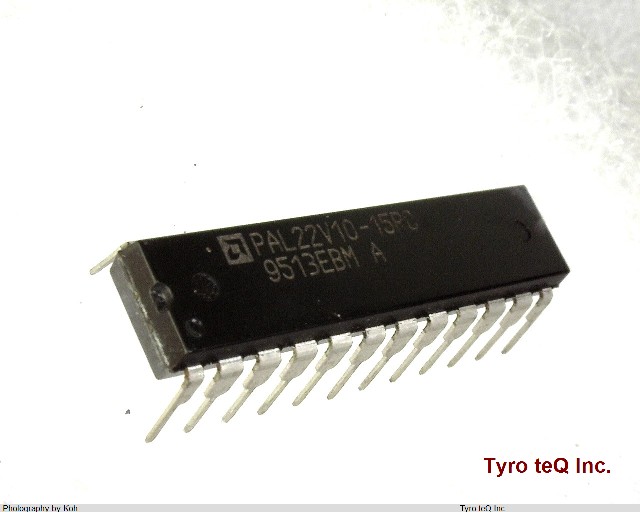

PAL22V10-15PC データシート

Name: PAL22V10-15PC
Brand: AMD
SKU: 260239610-0000-0000-0000

PAL22V10-15PC - AMD の商品詳細ページです。

２営業日以内に回答いたします

PAL22V10-15PC の詳細情報

型番	PAL22V10-15PC
メーカー	AMD
データシート
Additional Feature	10 MACROCELLS; REGISTER PRELOAD; SHARED INPUT/CLOCK; 1 EXTERNAL CLOCK
Architecture	PAL-TYPE
Clock Frequency-Max	50 MHz
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Length	30.734 mm
Number of Dedicated Inputs	11
Number of I/O Lines	10
Number of Inputs	22
Number of Outputs	10
Number of Product Terms	132
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	11 DEDICATED INPUTS, 10 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Programmable Logic Type	OT PLD
Propagation Delay	15 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
