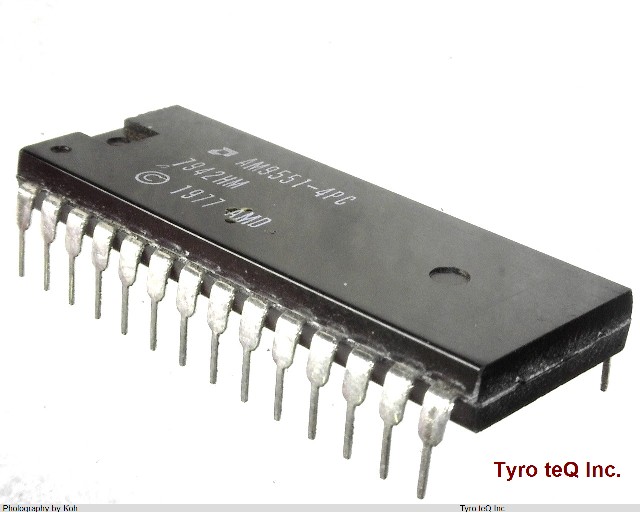

AM9551-4PC データシート

Name: AM9551-4PC
Brand: AMD
SKU: 400050105-0000-0000-0000

AM9551-4PC - AMD の商品詳細ページです。

２営業日以内に回答いたします

AM9551-4PC の詳細情報

型番	AM9551-4PC
メーカー	AMD
データシート
Address Bus Width	0
Boundary Scan	NO
Bus Compatibility	8080A
Clock Frequency-Max	2.6 MHz
Communication Protocol	ASYNC, BIT; SYNC, BYTE; BISYNC; EXT SYNC
Data Encoding/Decoding Method	NRZ
External Data Bus Width	8
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Length	37.1094 mm
Low Power Mode	NO
Number of DMA Channels	0
Number of I/O Lines	0
Number of Serial I/Os	1
Number of Terminals	28
On Chip Data RAM Width	0
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	5.461 mm
Sub Category	Serial IO/Communication Controllers
Supply Current-Max	80 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	MOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
