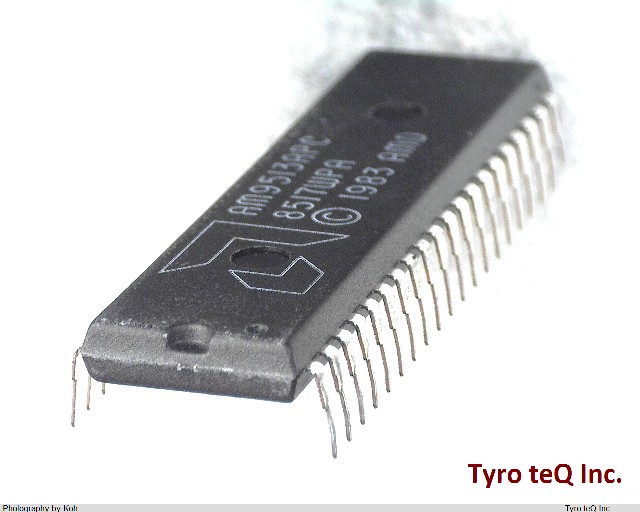

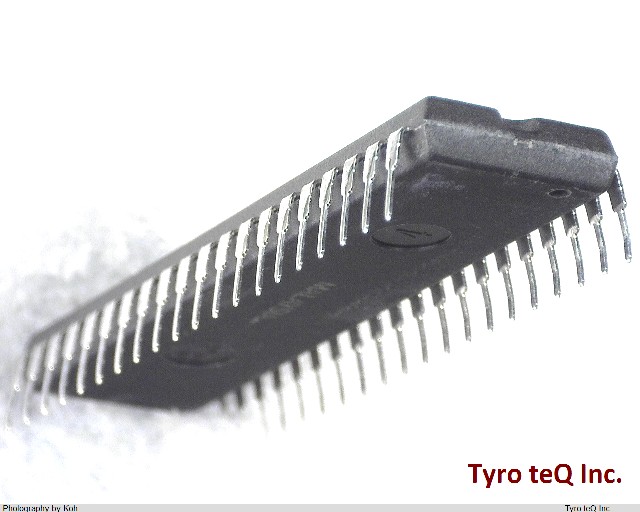

AM9513APC データシート

Name: AM9513APC
Brand: AMD
SKU: 110074066-0000-0000-0000

AM9513APC - AMD の商品詳細ページです。

２営業日以内に回答いたします

AM9513APC の詳細情報

型番	AM9513APC
メーカー	AMD
データシート
External Data Bus Width	16
Information Access Method	PARALLEL, DIRECT ADDRESS
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	52.0065 mm
Number of Bits	16
Number of Terminals	40
Number of Timers	5
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Clock Frequency-Max	0.0069 MHz
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	5.461 mm
Sub Category	Other Microprocessor ICs
Supply Current-Max	255 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	MOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	TIMER, PROGRAMMABLE
