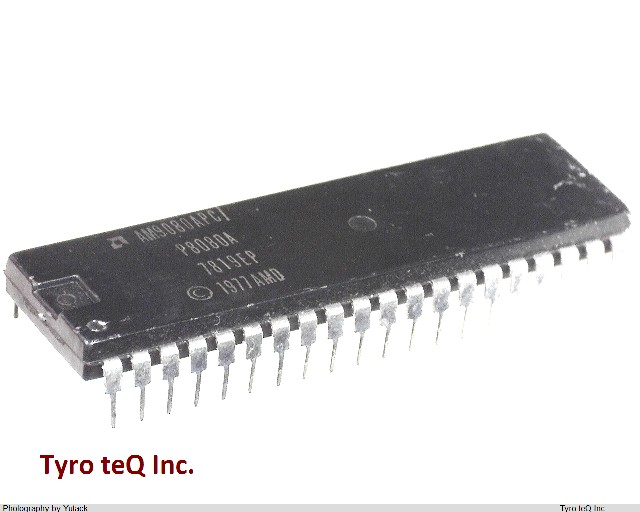

AM9080APC データシート

Name: AM9080APC
Brand: AMD
SKU: 110240222-0000-0000-0000

AM9080APC - AMD の商品詳細ページです。

２営業日以内に回答いたします

AM9080APC の詳細情報

型番	AM9080APC
メーカー	AMD
データシート
Address Bus Width	16
Bit Size	8
Boundary Scan	NO
Clock Frequency-Max	2 MHz
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	52.0065 mm
Low Power Mode	NO
Number of DMA Channels	0
Number of External Interrupts	1
Number of Serial I/Os	0
Number of Terminals	40
On Chip Data RAM Width	0
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	+-5,12 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	5.461 mm
Speed	2 rpm
Sub Category	Microprocessors
Supply Current-Max	80 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	MOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR
