AM29LV010B-70JC Amd

AM29LV010B-70JC - AMD の商品詳細ページです。

1

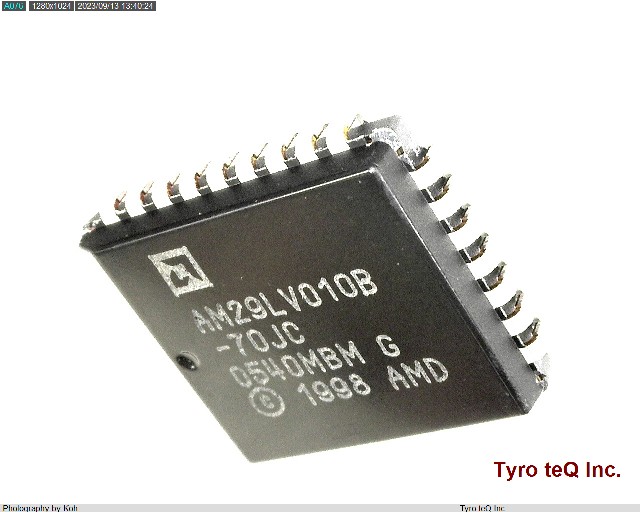

AM29LV010B-70JC
  • AM29LV010B-70JC
  • AM29LV010B-70JC
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

AM29LV010B-70JC の詳細情報

  • 仕様・詳細
  • メーカー情報
型番AM29LV010B-70JC
メーカーAMD
Access Time-Max 70 ns
Access Time-Max (ns) 70
Additional Feature MINIMUM 1000K WRITE CYCLES; 20 YEAR DATA RETENTION
Command User Interface YES
DLA Qualification Not Qualified
Data Polling YES
Data Retention Time-Min 20
Endurance (Write/Erase Cycles) 1000000
J-STD-609 Code e0
JESD-30 Code R-PQCC-J32
Length 13.97 mm
Length (mm) 13.97
Memory Density 1048576 bit
Memory Density (bits) 1048576
Memory IC Type FLASH
Memory Organization 128KX8
Memory Width 8
Moisture Sensitivity Level 2
Number of Functions 1
Number of Sectors/Size 8
Number of Terminals 32
Number of Words 131072 words
Number of Words (words) 131072
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Max (Cel) 70
Operating Temperature-Min 0 Cel
Operating Temperature-Min (Cel) 0
Organization 128KX8
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER Meter
Parallel/Serial PARALLEL
Power Supplies (V) 3/3.3
Sector Size (words) 16K
Standby Current-Max (A) 5.0E-6
Sub Category Flash Memories
Supply Current-Max (mA) 30
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch (mm) 1.27
Terminal Position QUAD
Toggle Bit YES
Type NOR TYPE
会社名称Advanced Micro Devices, Inc.
設立1969
所在地One AMD Place P.O. Box 3453 Sunnyvale, CA 94088-3453，USA
URLhttp://www.amd.com/

AM29LV010B-70JCのレビュー

AM29LV010B-70JC のご注文について
