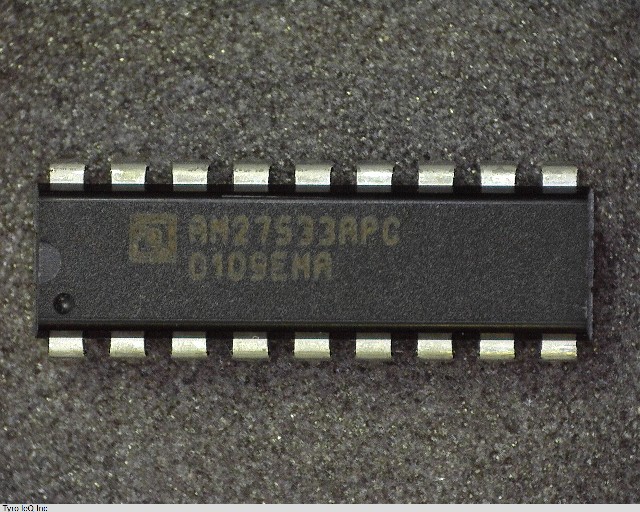

AM27S33APC

Name: AM27S33APC
Brand: AMD
SKU: 110241395-0000-0000-0000

AM27S33APC - AMD の商品詳細ページです。

２営業日以内に回答いたします

AM27S33APC の詳細情報

型番	AM27S33APC
メーカー	AMD
Access Time-Max	35 ns
JESD-30 Code	R-PDIP-T18
JESD-609 Code	e0
Length	22.987 mm
Memory Density	4096 bit
Memory IC Type	OTP ROM
Memory Width	4
Number of Functions	1
Number of Terminals	18
Number of Words	1024 words
Number of Words Code	1K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	1KX4
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP18,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	OTP ROMs
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
