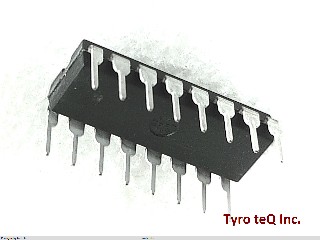

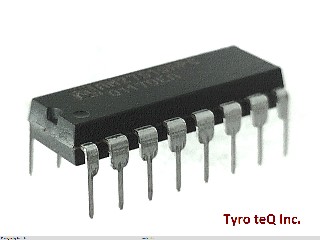

AM27S19APC データシート

Name: AM27S19APC
Brand: AMD
SKU: 110257340-0000-0000-0000

AM27S19APC - AMD の商品詳細ページです。

２営業日以内に回答いたします

AM27S19APC の詳細情報

型番	AM27S19APC
メーカー	AMD
データシート
Access Time-Max	25 ns
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.05 mm
Memory Density	256 bit
Memory IC Type	OTP ROM
Memory Width	8
Number of Functions	1
Number of Terminals	16
Number of Words	32 words
Number of Words Code	32
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	75 Cel
Operating Temperature-Min	0 Cel
Organization	32X8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	OTP ROMs
Supply Current-Max	0.115 mA
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
