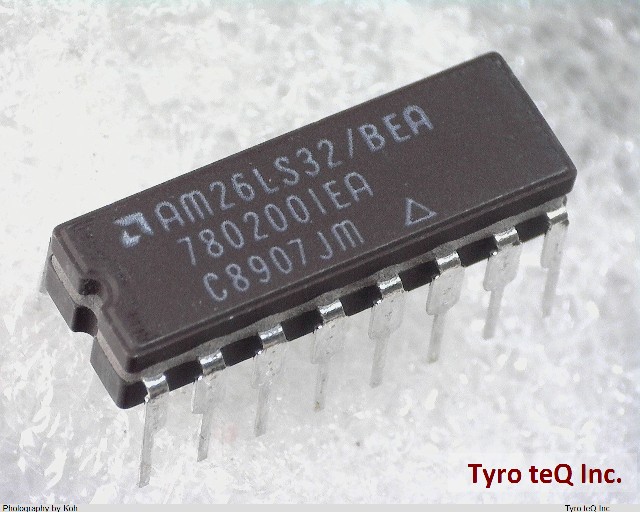

AM26LS32/BEA データシート

Name: AM26LS32/BEA
Brand: AMD
SKU: 110073013-0000-0000-0000

AM26LS32/BEA - AMD の商品詳細ページです。

２営業日以内に回答いたします

AM26LS32/BEA の詳細情報

型番	AM26LS32/BEA
メーカー	AMD
データシート
Differential Output	NO
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE RECEIVER
Interface Standard	EIA-422; EIA-423
JESD-30 Code	R-CDIP-T16
JESD-609 Code	e0
Length	19.431 mm
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Output Characteristics	3-STATE
Output Low Current-Max	0.008 Amp
Output Polarity	TRUE
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	38 ns
Receiver Number of Bits	4
Screening Level	38535Q/M;38534H;883B
Seated Height-Max	5.08 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	70 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	MILITARY
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
