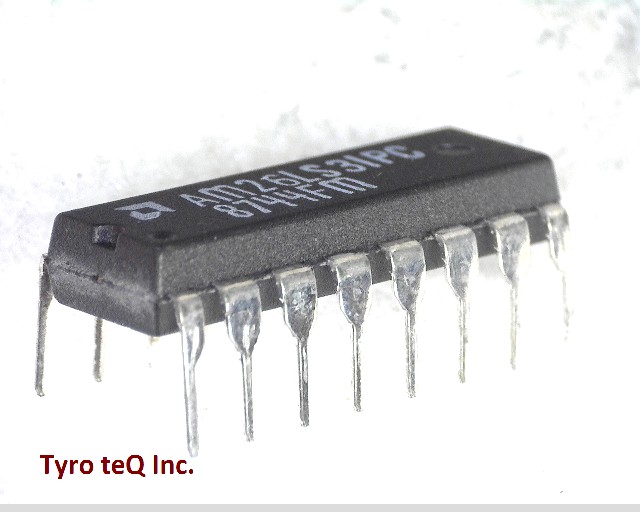

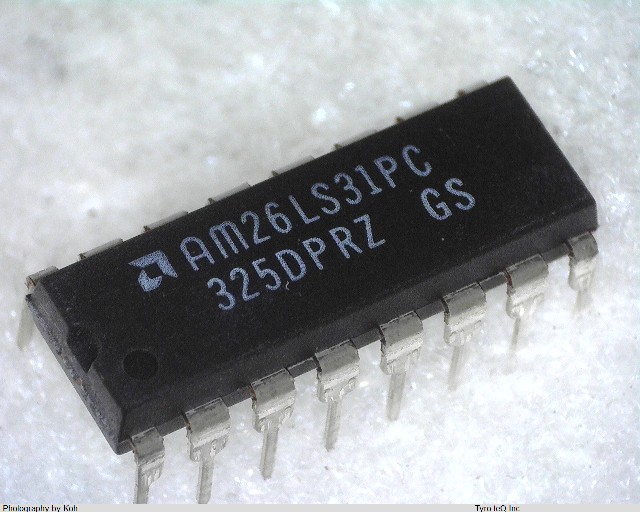

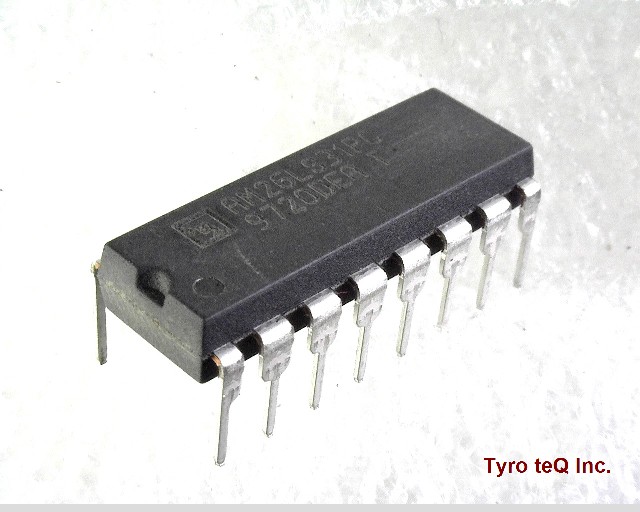

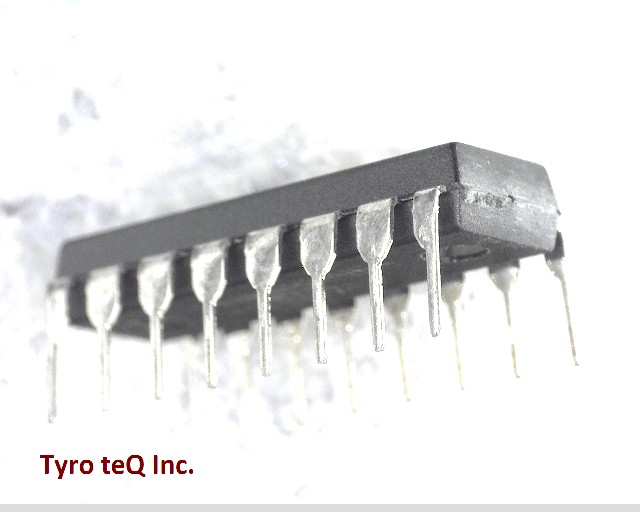

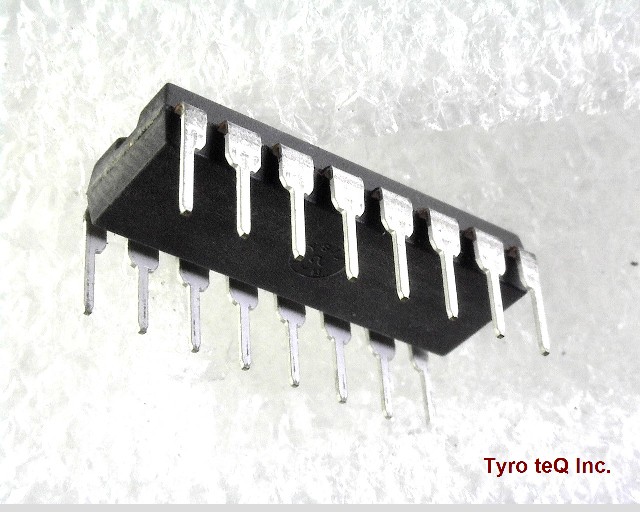

AM26LS31PC データシート

Name: AM26LS31PC
Brand: AMD
SKU: 110240150-0000-0000-0000

AM26LS31PC - AMD の商品詳細ページです。

２営業日以内に回答いたします

AM26LS31PC の詳細情報

型番	AM26LS31PC
メーカー	AMD
データシート
Differential Output	YES
Driver Number of Bits	4
High Level Input Current-Max	2.0E-5 Amp
Input Characteristics	STANDARD
Interface IC Type	LINE DRIVER
Interface Standard	EIA-422; FED STD 1020
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.05 mm
Moisture Sensitivity Level	1
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Out Swing-Min	2 V
Output Characteristics	3-STATE
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Seated Height-Max	4.318 mm
Sub Category	Line Driver or Receivers
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	15 ns
Width	7.62 mm
