AM25LS2519PC データシート

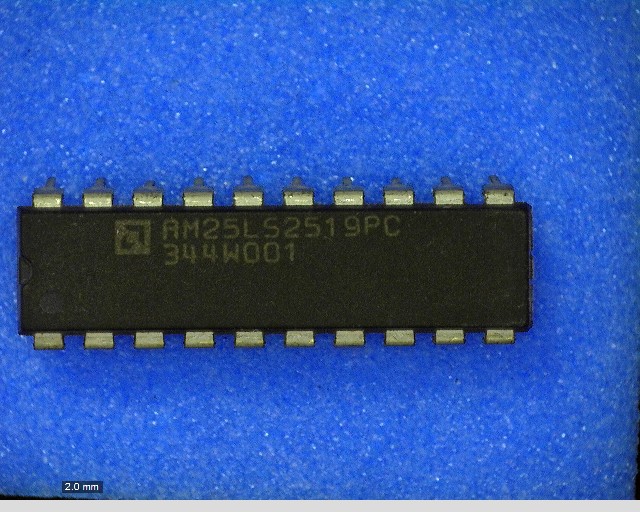

Name: AM25LS2519PC
Brand: AMD
SKU: 110110344-0000-0000-0000

AM25LS2519PC - AMD の商品詳細ページです。

２営業日以内に回答いたします

AM25LS2519PC の詳細情報

型番	AM25LS2519PC
メーカー	AMD
データシート
Additional Feature	TWO SET OF OUTPUTS AVAILABLE SIMULTANEOUSLY; ONE SET HAVING CONFIGURABLE OUTPUTS
Family	TTL/H/L
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Length	26.289 mm
Load Capacitance (CL)	50 pF
Logic IC Type	D FLIP-FLOP
Number of Bits	4
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supply Current-Max (ICC)	39 mA
Propagation Delay (tpd)	39 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	7.62 mm
fmax-Min	30 MHz
