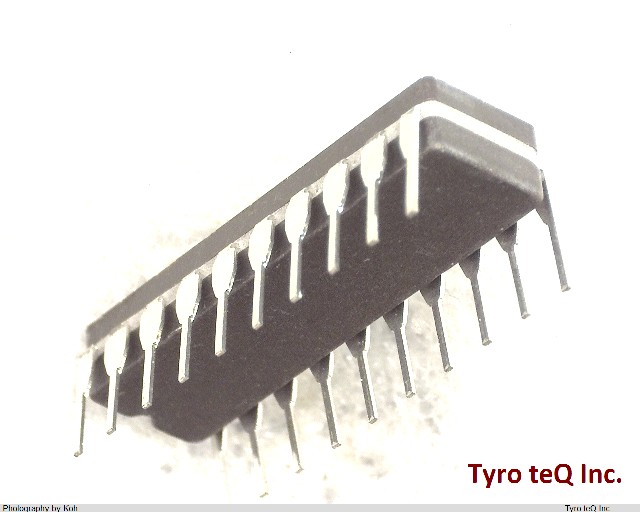

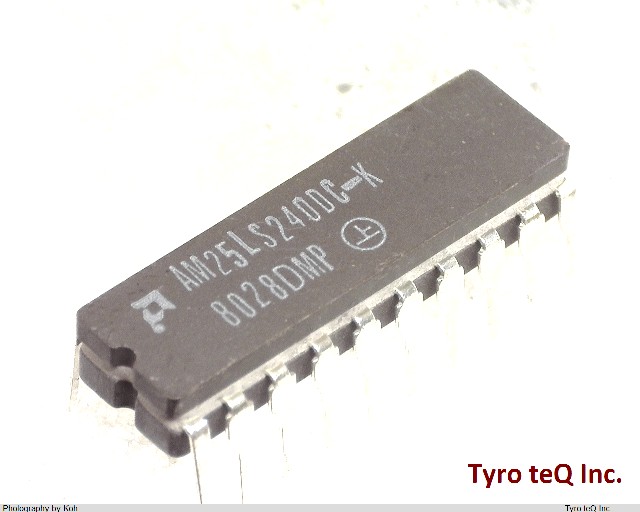

AM25LS240DC
データシート
1
-
- 個
２営業日以内に回答いたします
AM25LS240DC の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AM25LS240DC |
|---|---|
| メーカー | AMD |
| データシート |  |
| Control Type | ENABLE LOW |
| Family | TTL/H/L |
| JESD-30 Code | R-CDIP-T20 |
| JESD-609 Code | e0 |
| Length | 24.1935 mm |
| Load Capacitance (CL) | 45 pF |
| Logic IC Type | BUS DRIVER |
| Number of Bits | 4 |
| Number of Functions | 2 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | INVERTED |
| Package Body Material | CERAMIC |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 5 V |
| Power Supply Current-Max (ICC) | 44 mA |
| Propagation Delay (tpd) | 22 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.588 mm |
| Sub Category | Bus Driver/Transceivers |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
| 会社名称 | Advanced Micro Devices, Inc. |
|---|---|
| 設立 | 1969 |
| 所在地 | One AMD Place P.O. Box 3453 Sunnyvale, CA 94088-3453，USA |
| URL | http://www.amd.com/ |
