EPM9320ALI84-10 データシート

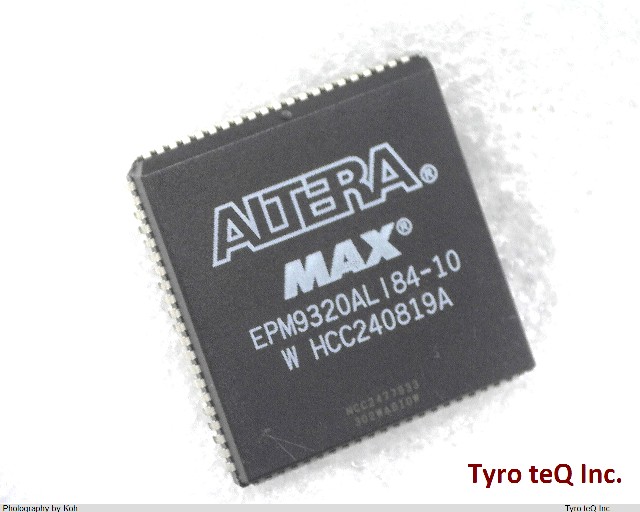

Name: EPM9320ALI84-10
Brand: ALTERA
SKU: 150002121-0000-0000-0000

EPM9320ALI84-10 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPM9320ALI84-10 の詳細情報

型番	EPM9320ALI84-10
メーカー	ALTERA
データシート
Additional Feature	320 MACROCELLS; 20 LABS; 484 FLIP FLOPS; CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
Clock Frequency-Max	144.9 MHz
In-System Programmable	YES
JESD-30 Code	S-PQCC-J84
JESD-609 Code	e0
JTAG BST	YES
Length	29.3116 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	0
Number of I/O Lines	60
Number of Inputs	60
Number of Macro Cells	320
Number of Outputs	60
Number of Terminals	84
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	0 DEDICATED INPUTS, 60 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC84,1.2SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	3.3/5,5 V
Programmable Logic Type	EE PLD
Propagation Delay	10.8 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Width	29.3116 mm
