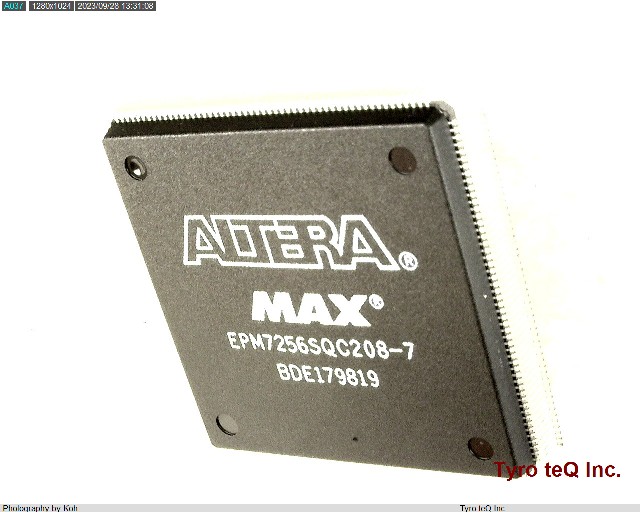

EPM7256SQC2087 データシート

Name: EPM7256SQC2087
Brand: ALTERA
SKU: 150002113-0000-0000-0000

EPM7256SQC2087 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPM7256SQC2087 の詳細情報

型番	EPM7256SQC2087
メーカー	ALTERA
データシート
Additional Feature	256 MACROCELLS; 16 LABS; CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
Clock Frequency-Max	166.7 MHz
In-System Programmable	YES
JESD-30 Code	S-PQFP-G208
JESD-609 Code	e0
JTAG BST	YES
Length	28 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	0
Number of I/O Lines	164
Number of Macro Cells	256
Number of Terminals	208
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	0 DEDICATED INPUTS, 164 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	FQFP
Package Equivalence Code	QFP208,1.2SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, FINE PITCH Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	3.3/5,5 V
Programmable Logic Type	EE PLD
Propagation Delay	7.5 ns
Qualification Status	Not Qualified
Seated Height-Max	4.1 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	28 mm
