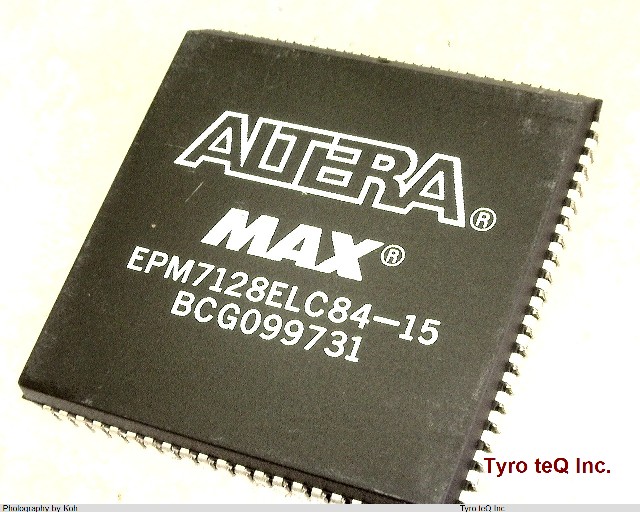

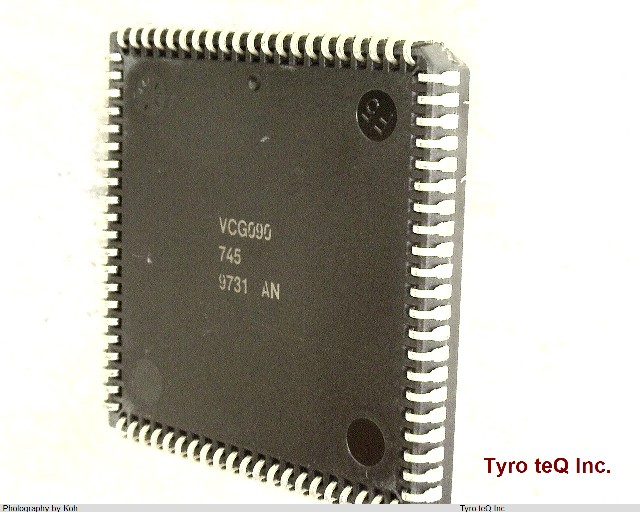

EPM7128ELC84-15 データシート

Name: EPM7128ELC84-15
Brand: ALTERA
SKU: 150011265-0000-0000-0000

EPM7128ELC84-15 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPM7128ELC84-15 の詳細情報

型番	EPM7128ELC84-15
メーカー	ALTERA
データシート
Additional Feature	128 MACROCELLS; CONFIGURABLE I/O OPERATION (3.3V OR 5V); 2 EXTERNAL CLOCKS; SHARED INPUT/CLOCK
Clock Frequency-Max	100 MHz
In-System Programmable	NO
JESD-30 Code	S-PQCC-J84
JESD-609 Code	e0
JTAG BST	NO
Length	29.3116 mm
Moisture Sensitivity Level	2
Number of Dedicated Inputs	0
Number of I/O Lines	68
Number of Macro Cells	128
Number of Terminals	84
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	0 DEDICATED INPUTS, 68 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC84,1.2SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	3.3/5,5 V
Programmable Logic Type	EE PLD
Propagation Delay	15 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	29.3116 mm
