EPM7064STI44-7 データシート

Name: EPM7064STI44-7
Brand: ALTERA
SKU: 150004091-0000-0000-0000

EPM7064STI44-7 - ALTERA の商品詳細ページです。

No Image

２営業日以内に回答いたします

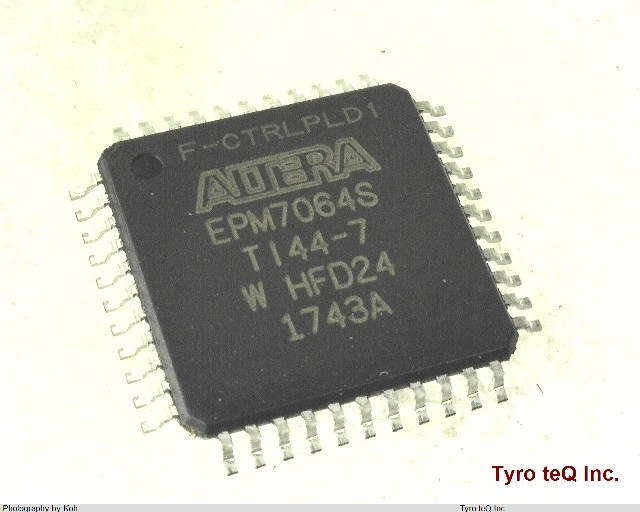

EPM7064STI44-7 の詳細情報

型番	EPM7064STI44-7
メーカー	ALTERA
データシート
Additional Feature	64 MACROCELLS; 4 LABS; CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
Clock Frequency-Max	166.7 MHz
In-System Programmable	YES
JESD-30 Code	S-PQFP-G44
JESD-609 Code	e0
JTAG BST	NO
Length	10 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	0
Number of I/O Lines	36
Number of Macro Cells	64
Number of Terminals	44
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	0 DEDICATED INPUTS, 36 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	LQFP
Package Equivalence Code	TQFP44,.47SQ,32
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE Meter
Peak Reflow Temperature (Cel)	235
Power Supplies	5 V
Programmable Logic Type	EE PLD
Propagation Delay	7.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.27 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	10 mm
