EPM7064STC100-10N データシート

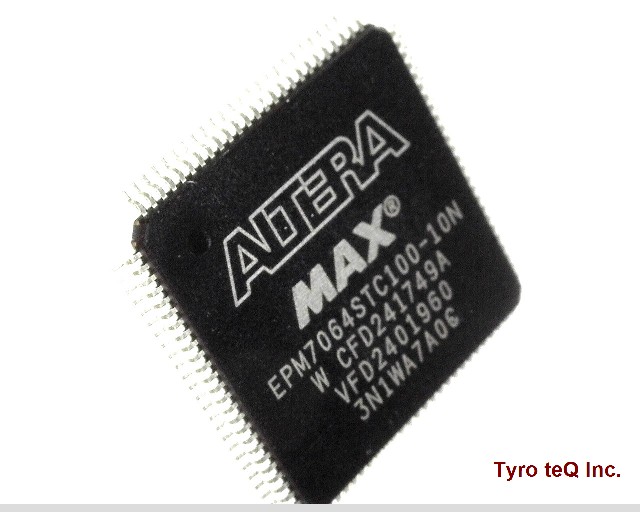

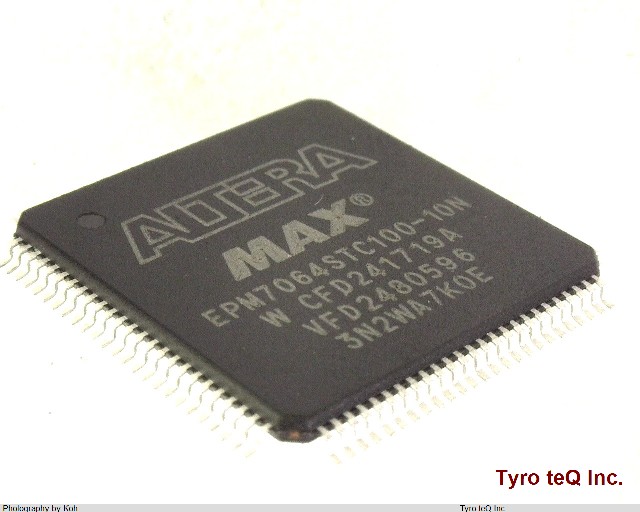

Name: EPM7064STC100-10N
Brand: ALTERA
SKU: 150004088-0000-0000-0000

EPM7064STC100-10N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPM7064STC100-10N の詳細情報

型番	EPM7064STC100-10N
メーカー	ALTERA
データシート
Additional Feature	64 MACROCELLS; 4 LABS; CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
Clock Frequency-Max	125 MHz
In-System Programmable	YES
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e3
JTAG BST	NO
Length	14 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	0
Number of I/O Lines	68
Number of Macro Cells	64
Number of Terminals	100
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	0 DEDICATED INPUTS, 68 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	TQFP100,.63SQ
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3/5,5 V
Programmable Logic Type	EE PLD
Propagation Delay	10 ns
Qualification Status	Not Qualified
Seated Height-Max	1.27 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Width	14 mm
