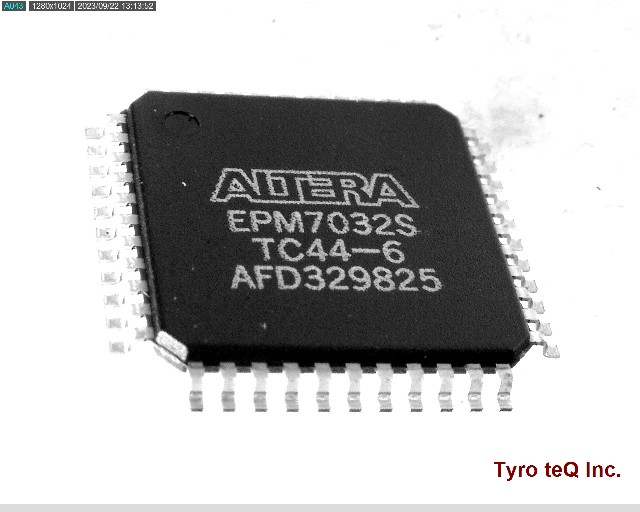

EPM7032STC44-6
  • EPM7032STC44-6
  • EPM7032STC44-6
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

EPM7032STC44-6 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番EPM7032STC44-6
メーカーALTERA
データシートProduct_list_pdf
Additional Feature YES
Clock Frequency-Max 200 MHz
In-System Programmable YES
JESD-30 Code S-PQFP-G44
JESD-609 Code e0
JTAG BST YES
Length 10 mm
Moisture Sensitivity Level 3
Number of Dedicated Inputs 0
Number of I/O Lines 36
Number of Macro Cells 32
Number of Terminals 44
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Organization 0 DEDICATED INPUTS, 36 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code TQFP44,.47SQ,32
Package Shape SQUARE
Package Style FLATPACK Meter
Peak Reflow Temperature (Cel) 220
Power Supplies 5 V
Programmable Logic Type EE PLD
Propagation Delay 6 ns
Qualification Status Not Qualified
Seated Height-Max 1.27 mm
Sub Category Programmable Logic Devices
Supply Voltage-Max 5.25 V
Supply Voltage-Min 4.75 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Width 10 mm
