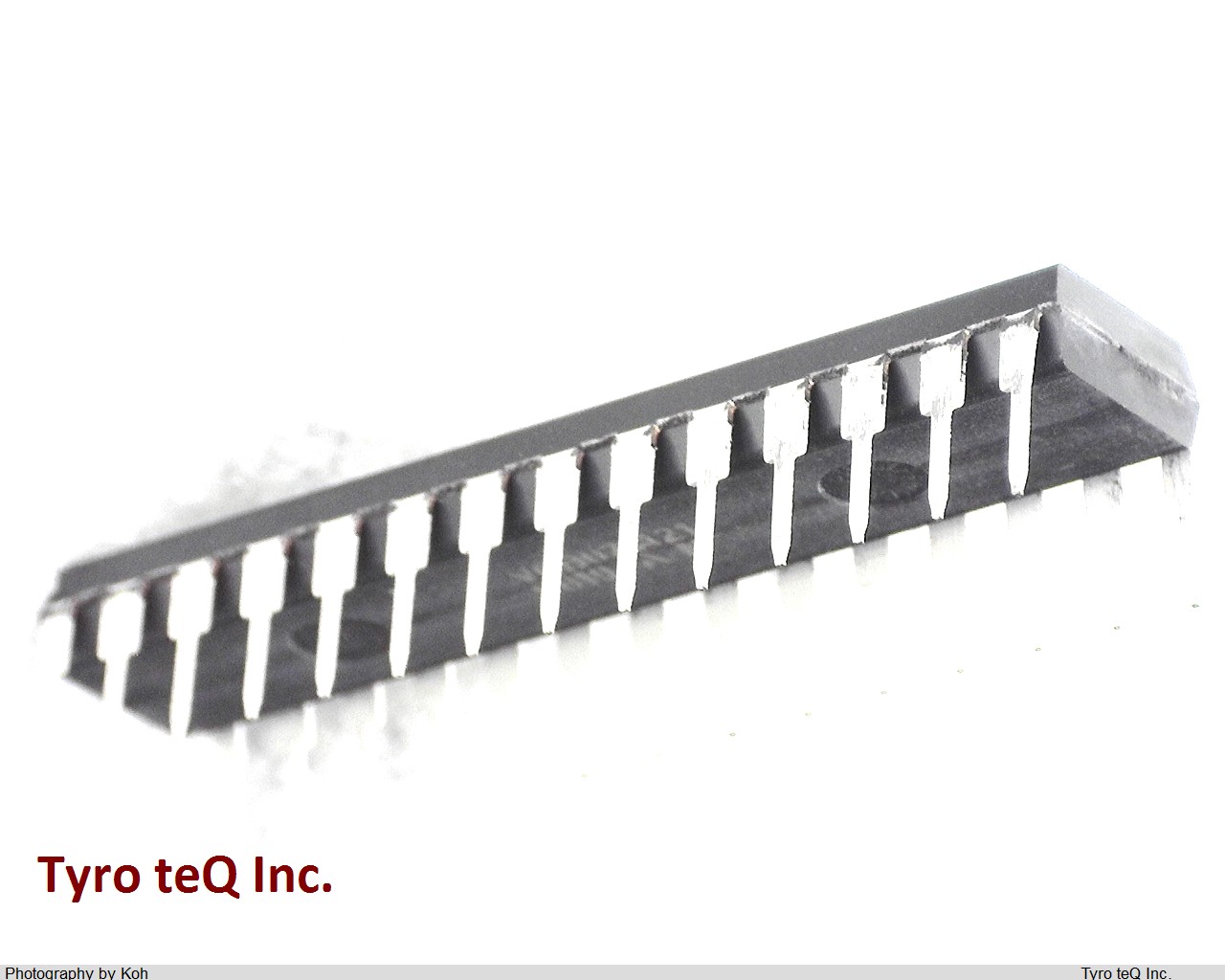

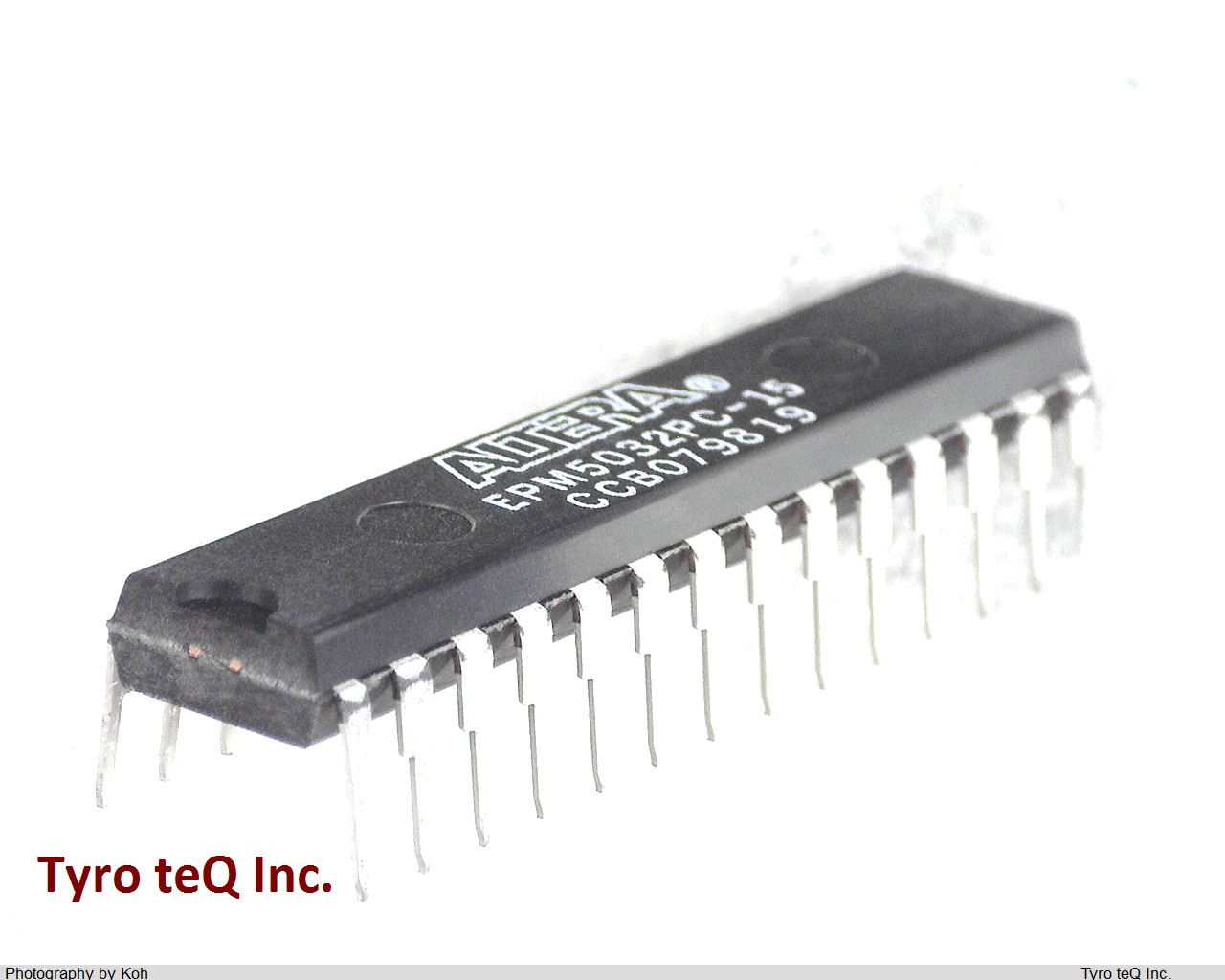

EPM5032PC-15 データシート

Name: EPM5032PC-15
Brand: ALTERA
SKU: 150011129-0000-0000-0000

EPM5032PC-15 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPM5032PC-15 の詳細情報

型番	EPM5032PC-15
メーカー	ALTERA
データシート
Additional Feature	MACROCELLS INTERCONNECTED BY PIA; 1 LAB; 32 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
Architecture	PAL-TYPE
Clock Frequency-Max	76.9 MHz
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Number of Dedicated Inputs	7
Number of I/O Lines	16
Number of Inputs	24
Number of Outputs	16
Number of Product Terms	320
Number of Terminals	28
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	7 DEDICATED INPUTS, 16 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	5 V
Programmable Logic Type	OT PLD
Propagation Delay	15 ns
Qualification Status	Not Qualified
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
