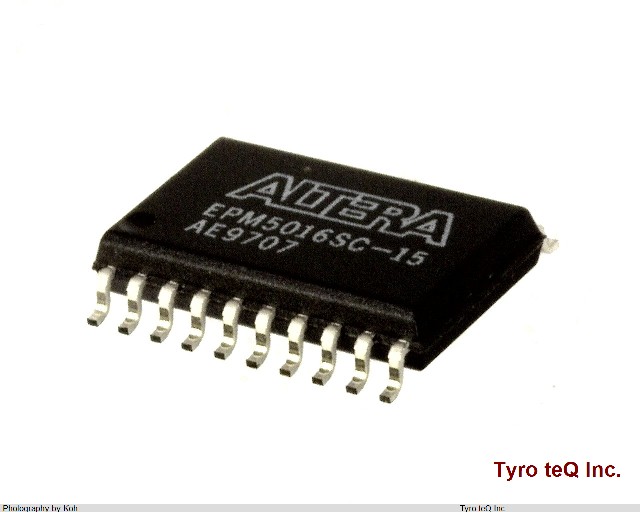

EPM5016SC-15 データシート

Name: EPM5016SC-15
Brand: ALTERA
SKU: 150011125-0000-0000-0000

EPM5016SC-15 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPM5016SC-15 の詳細情報

型番	EPM5016SC-15
メーカー	ALTERA
データシート
Additional Feature	MACROCELLS INTERCONNECTED BY PIA; 16 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
Architecture	PAL-TYPE
Clock Frequency-Max	100 MHz
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	12.8 mm
Number of Dedicated Inputs	7
Number of I/O Lines	8
Number of Inputs	16
Number of Outputs	8
Number of Product Terms	160
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	7 DEDICATED INPUTS, 8 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	5 V
Programmable Logic Type	OT PLD
Propagation Delay	15 ns
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	7.5 mm
