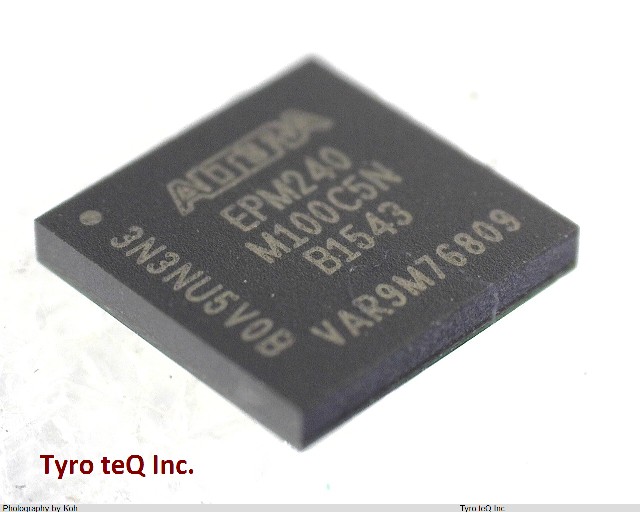

EPM240M100C5N データシート

Name: EPM240M100C5N
Brand: ALTERA
SKU: 150039491-0000-0000-0000

EPM240M100C5N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPM240M100C5N の詳細情報

型番	EPM240M100C5N
メーカー	ALTERA
データシート
Additional Feature	IT CAN ALSO OPERATE AT 3.3V
In-System Programmable	YES
JESD-30 Code	S-PBGA-B100
JESD-609 Code	e1
JTAG BST	YES
Length	6 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	0
Number of I/O Lines	80
Number of Inputs	80
Number of Macro Cells	192
Number of Outputs	80
Number of Terminals	100
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Organization	0 DEDICATED INPUTS, 80 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA100,11X11,20
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.5/3.3,2.5/3.3 V
Programmable Logic Type	FLASH PLD
Propagation Delay	7.5 ns
Qualification Status	Not Qualified
Sub Category	Programmable Logic Devices
Supply Voltage-Max	2.625 V
Supply Voltage-Min	2.375 V
Supply Voltage-Nom	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	TIN SILVER COPPER

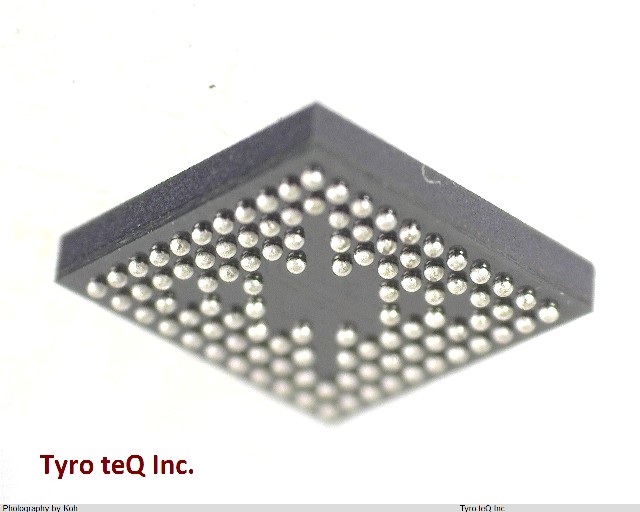

Terminal Form	BALL
Terminal Pitch	0.5 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	6 mm
