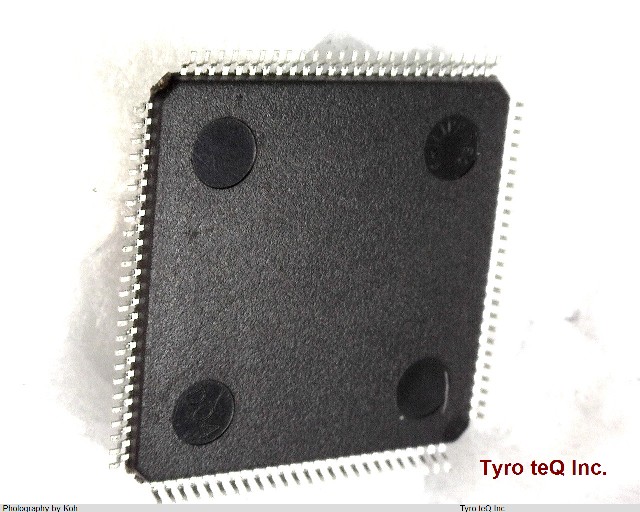

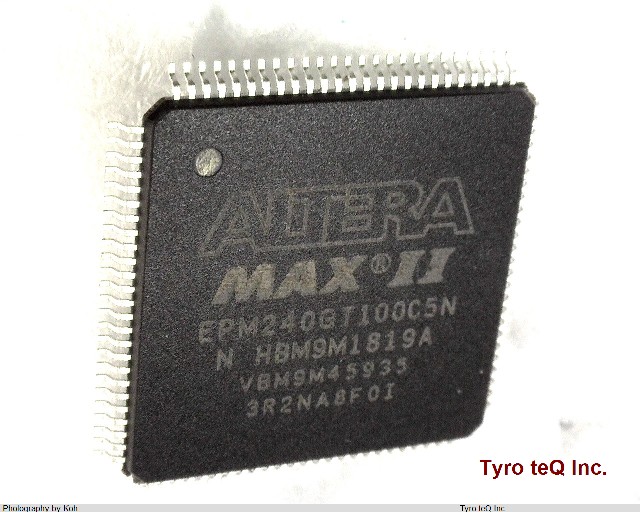

EPM240GT100C5 データシート

Name: EPM240GT100C5
Brand: ALTERA
SKU: 150039485-0000-0000-0000

EPM240GT100C5 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPM240GT100C5 の詳細情報

型番	EPM240GT100C5
メーカー	ALTERA
データシート
Additional Feature	IT CAN ALSO OPERATE AT 3.3V
In-System Programmable	YES
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e0
JTAG BST	YES
Length	14 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	0
Number of I/O Lines	80
Number of Inputs	80
Number of Macro Cells	192
Number of Outputs	80
Number of Terminals	100
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Organization	0 DEDICATED INPUTS, 80 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	TQFP100,.63SQ
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	235
Power Supplies	1.5/3.3,1.8 V
Programmable Logic Type	FLASH PLD
Propagation Delay	7.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	1.89 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	14 mm
