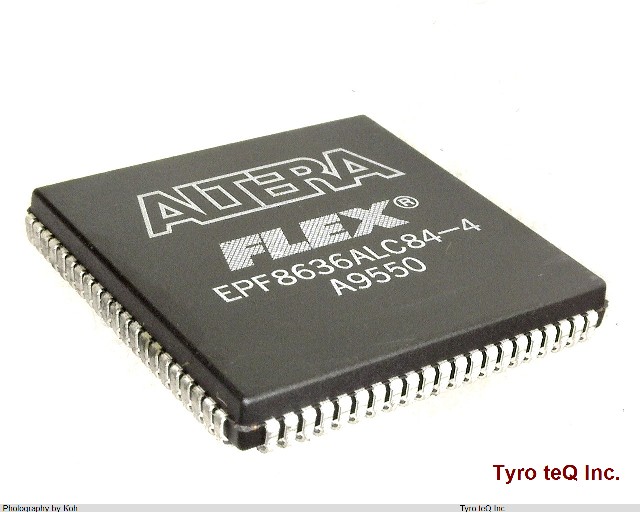

EPF8636ALC84-4 データシート

Name: EPF8636ALC84-4
Brand: ALTERA
SKU: 150001946-0000-0000-0000

EPF8636ALC84-4 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPF8636ALC84-4 の詳細情報

型番	EPF8636ALC84-4
メーカー	ALTERA
データシート
Additional Feature	504 LOGIC ELEMENTS
Clock Frequency-Max	357 MHz
JESD-30 Code	S-PQCC-J84
JESD-609 Code	e0
Length	29.3116 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	4
Number of I/O Lines	68
Number of Inputs	68
Number of Logic Cells	504
Number of Outputs	64
Number of Terminals	84
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	4 DEDICATED INPUTS, 68 I/O
Output Function	REGISTERED
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC84,1.2SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	3.3,3.3/5,5 V
Programmable Logic Type	LOADABLE PLD
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	29.3116 mm
