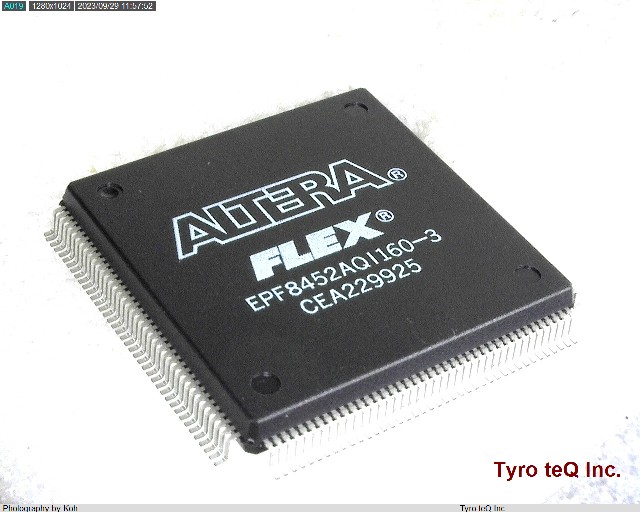

EPF8452AQI160-3

Name: EPF8452AQI160-3
Brand: ALTERA
SKU: 400067697-0000-0000-0000

EPF8452AQI160-3 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPF8452AQI160-3 の詳細情報

型番	EPF8452AQI160-3
メーカー	ALTERA
Additional Feature	336 LOGIC ELEMENTS
Clock Frequency-Max	385 MHz
JESD-30 Code	S-PQFP-G160
JESD-609 Code	e0
Length	28 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	4
Number of I/O Lines	120
Number of Inputs	120
Number of Logic Cells	336
Number of Outputs	116
Number of Terminals	160
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	4 DEDICATED INPUTS, 120 I/O
Output Function	REGISTERED
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	QFP160,1.2SQ
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	3.3/5,5 V
Programmable Logic Type	LOADABLE PLD
Qualification Status	Not Qualified
Seated Height-Max	4.07 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Width	28 mm
