EPF10K20RC240-4 データシート

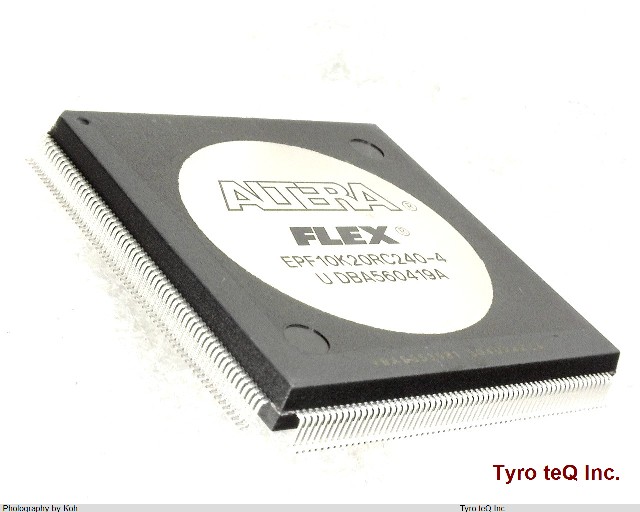

Name: EPF10K20RC240-4
Brand: ALTERA
SKU: 150000813-0000-0000-0000

EPF10K20RC240-4 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPF10K20RC240-4 の詳細情報

型番	EPF10K20RC240-4
メーカー	ALTERA
データシート
Additional Feature	1152 LOGIC ELEMENTS
Clock Frequency-Max	67.11 MHz
JESD-30 Code	S-PQFP-G240
JESD-609 Code	e0
Length	32 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	4
Number of I/O Lines	189
Number of Inputs	189
Number of Logic Cells	1152
Number of Outputs	189
Number of Terminals	240
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	4 DEDICATED INPUTS, 189 I/O
Output Function	REGISTERED
Package Body Material	PLASTIC/EPOXY
Package Code	HFQFP
Package Equivalence Code	HQFP240,1.37SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, HEAT SINK/SLUG, FINE PITCH Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	3.3/5 V
Programmable Logic Type	LOADABLE PLD
Propagation Delay	0.6 ns
Qualification Status	Not Qualified
Seated Height-Max	4.1 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	32 mm
