EPF10K100AFC484-3 データシート

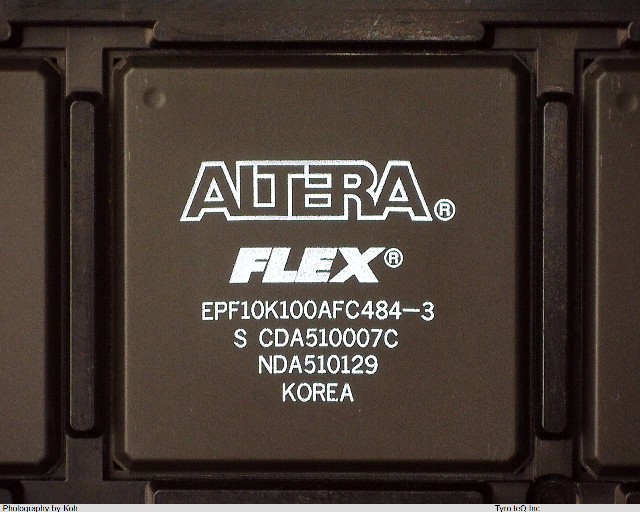

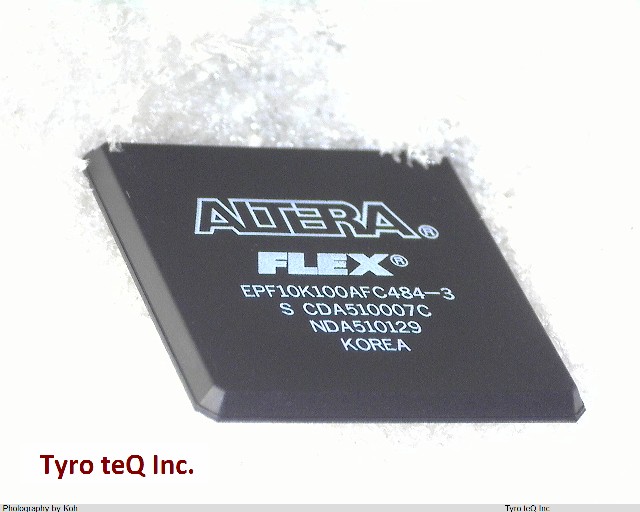

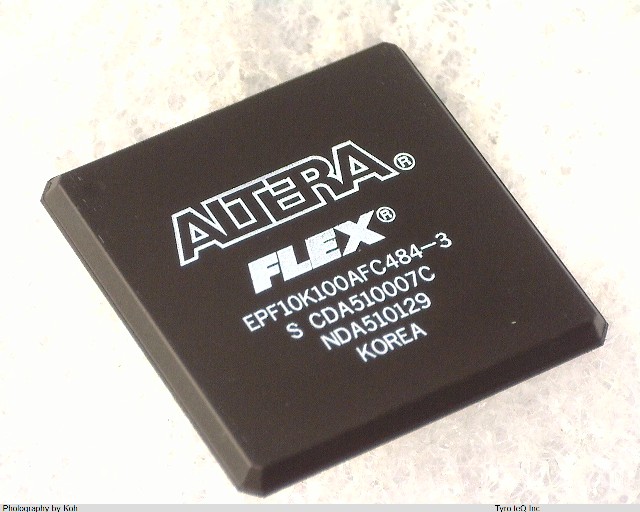

Name: EPF10K100AFC484-3
Brand: ALTERA
SKU: 150001848-0000-0000-0000

EPF10K100AFC484-3 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPF10K100AFC484-3 の詳細情報

型番	EPF10K100AFC484-3
メーカー	ALTERA
データシート
Additional Feature	4992 LOGIC ELEMENTS; 624 LABS
Clock Frequency-Max	80 MHz
JESD-30 Code	S-PBGA-B484
JESD-609 Code	e0
Length	23 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	4
Number of I/O Lines	369
Number of Inputs	406
Number of Logic Cells	4992
Number of Outputs	406
Number of Terminals	484
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	4 DEDICATED INPUTS, 369 I/O
Output Function	REGISTERED
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA484,22X22,40
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	2.5/3.3,3.3 V
Programmable Logic Type	LOADABLE PLD
Propagation Delay	0.8 ns
Qualification Status	Not Qualified
Seated Height-Max	2.1 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD

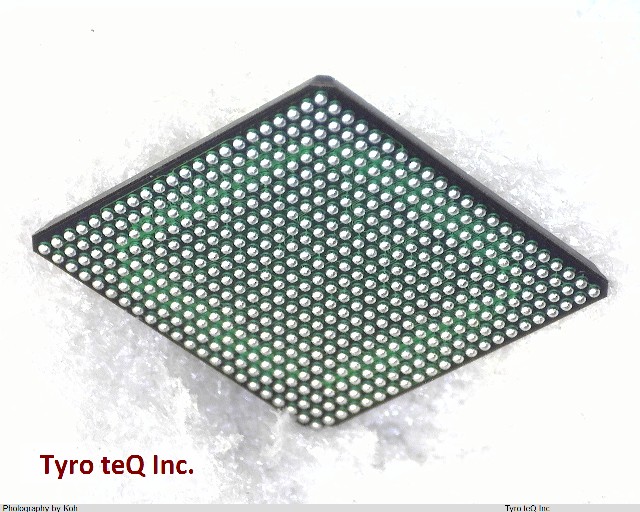

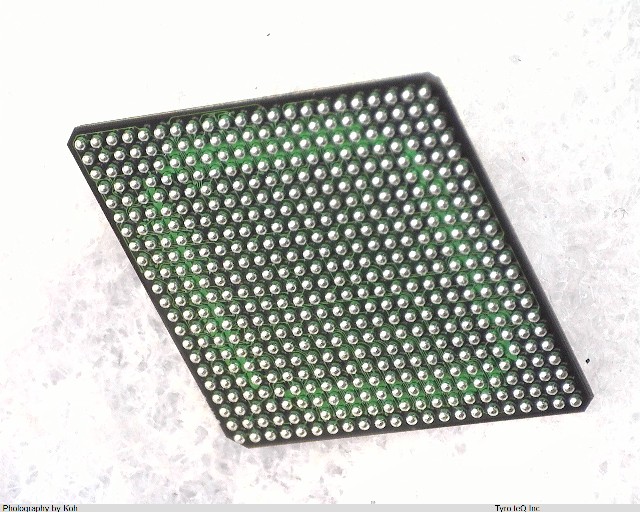

Terminal Form	BALL
Terminal Pitch	1 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	20
Width	23 mm
