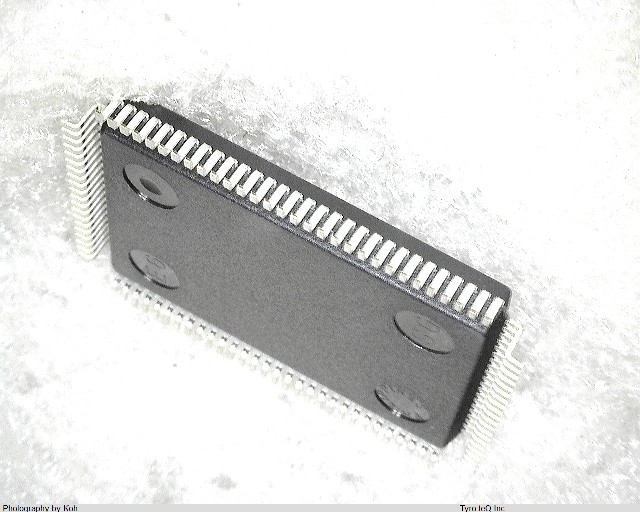

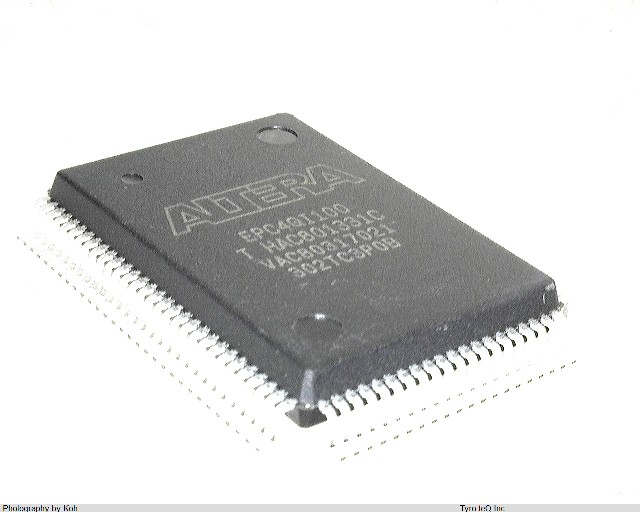

EPC4QI100 データシート

Name: EPC4QI100
Brand: ALTERA
SKU: 150001847-0000-0000-0000

EPC4QI100 - ALTERA の商品詳細ページです。

No Image

２営業日以内に回答いたします

EPC4QI100 の詳細情報

型番	EPC4QI100
メーカー	ALTERA
データシート
Clock Frequency-Max (fCLK)	66.7 MHz
Endurance	100000 Write/Erase Cycles
JESD-30 Code	R-PQFP-G100
JESD-609 Code	e0
Length	20 mm
Memory Density	4194304 bit
Memory IC Type	CONFIGURATION MEMORY
Memory Width	1
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	100
Number of Words	262144 words
Number of Words Code	4M
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	4MX1
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	QFP100,.7X.9
Package Shape	RECTANGULAR
Package Style	FLATPACK Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	220
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	3.4 mm
Standby Current-Max	0.00015 Amp
Sub Category	Flash Memories
Supply Current-Max	0.09 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Type	NOR TYPE
Width	14 mm
