EPC16UC88N データシート

Name: EPC16UC88N
Brand: ALTERA
SKU: 150003894-0000-0000-0000

EPC16UC88N - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

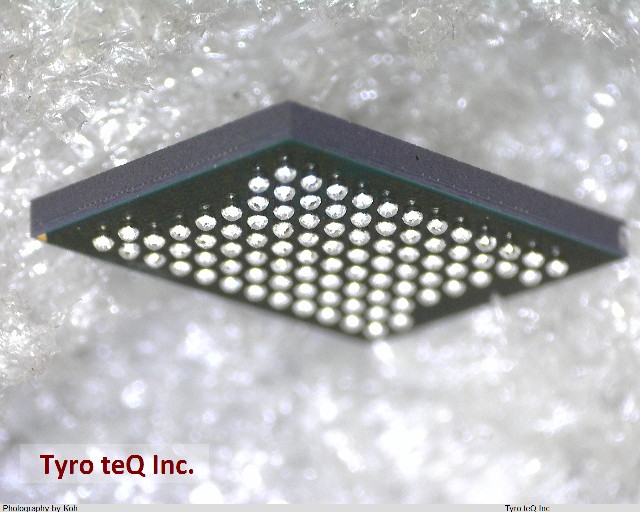

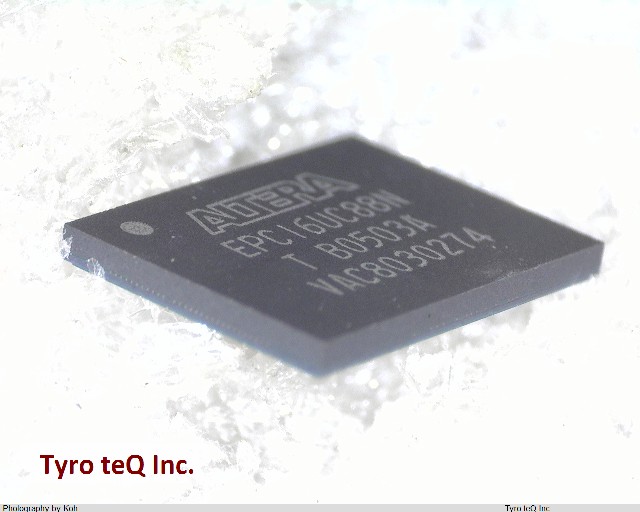

EPC16UC88N の詳細情報

型番	EPC16UC88N
メーカー	ALTERA
データシート
Clock Frequency-Max (fCLK)	66.7 MHz
Endurance	100000 Write/Erase Cycles
JESD-30 Code	R-PBGA-B88
JESD-609 Code	e1
Length	11 mm
Memory Density	16777216 bit
Memory IC Type	CONFIGURATION MEMORY
Memory Width	1
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	88
Number of Words	1048576 words
Number of Words Code	1M
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	1MX16
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	LFBGA
Package Equivalence Code	BGA88,8X12,32
Package Shape	RECTANGULAR
Package Style	GRID ARRAY, LOW PROFILE, FINE PITCH Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.4 mm
Standby Current-Max	0.00015 Amp
Sub Category	Flash Memories
Supply Current-Max	0.09 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN SILVER COPPER
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Type	NOR TYPE
Width	8 mm
