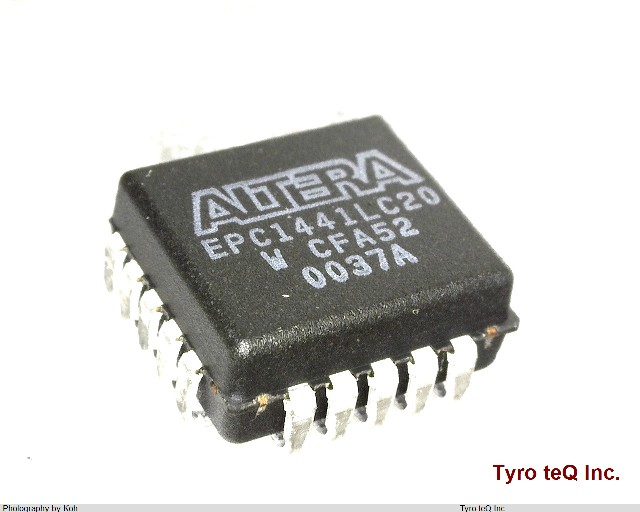

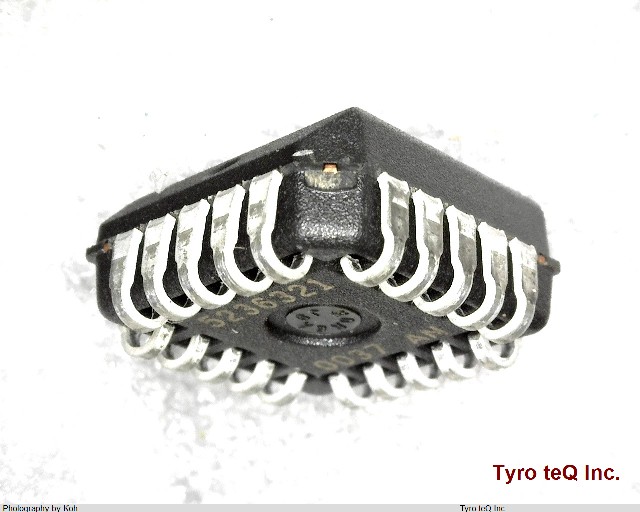

EPC1441LC20

Name: EPC1441LC20
Brand: ALTERA
SKU: 150001841-0000-0000-0000

EPC1441LC20 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPC1441LC20 の詳細情報

型番	EPC1441LC20
メーカー	ALTERA
Additional Feature	IT ALSO REQUIRES 5V NOMINAL SUPPLY
JESD-30 Code	S-PQCC-J20
JESD-609 Code	e0
Length	8.9662 mm
Memory Density	440800 bit
Memory IC Type	CONFIGURATION MEMORY
Memory Width	1
Mfr Name	ALTERA CORP
Mfr P/N	EPC1441LC20
Moisture Sensitivity Level	1
New Category	EPROMs
New Part Type	MEMORY_ICS
Number of Functions	1
Number of Terminals	20
Number of Words	440800 words
Number of Words Code	440800
Old Category	EEPROMs
Old Part Type	MEMORY_ICS
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	440800X1
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC20,.4SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Parallel/Serial	SERIAL
Part Objectid	1439676534
Power Supplies	3.3/5 V
Programming Voltage	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Standby Current-Max	6.0E-5 Amp
Sub Category	OTP ROMs
Supply Current-Max	0.03 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Terminal Finish	TIN LEAD
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Width	8.9662 mm
