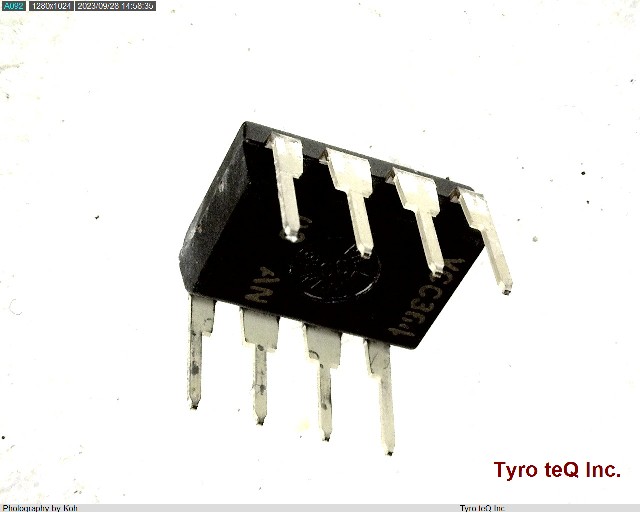

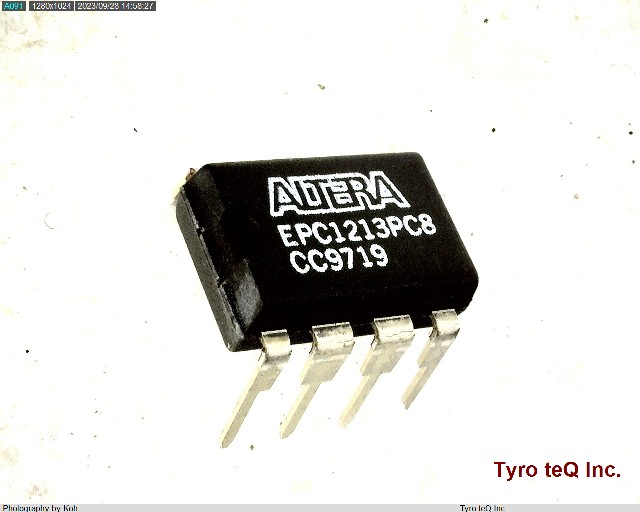

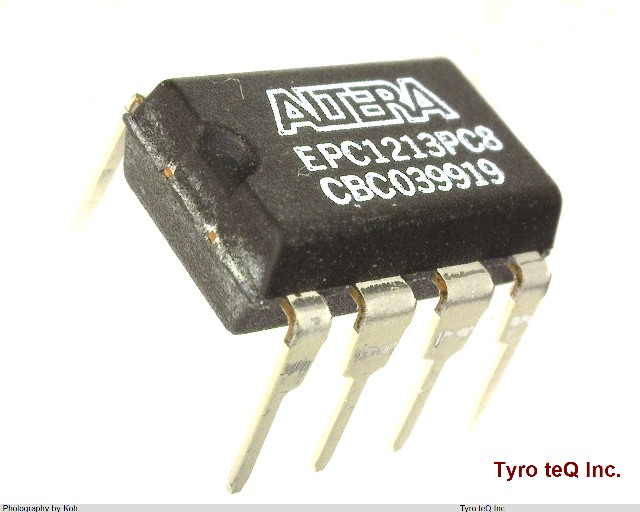

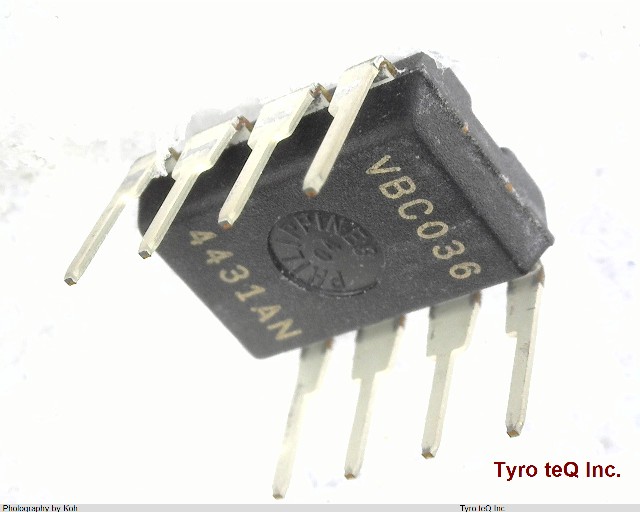

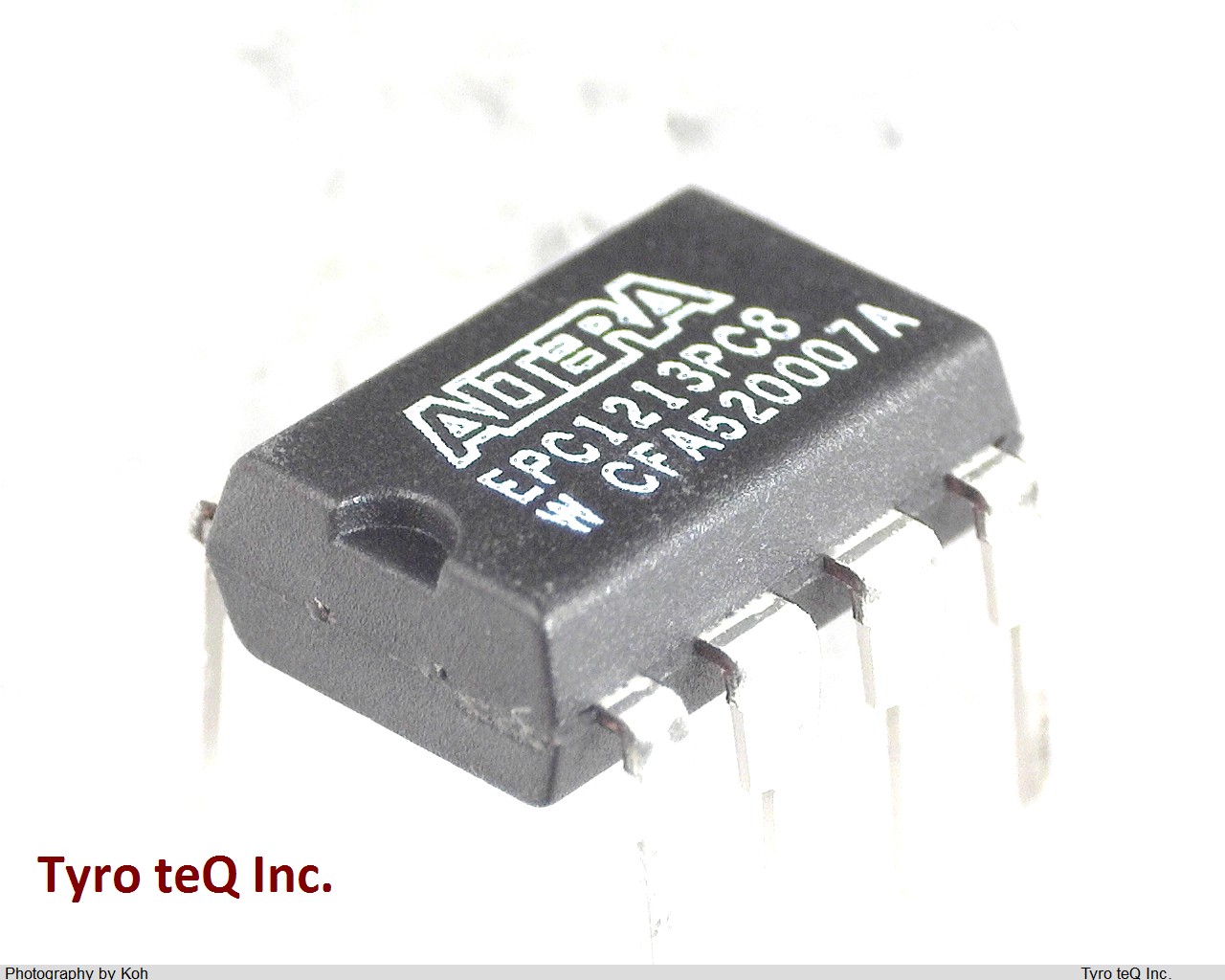

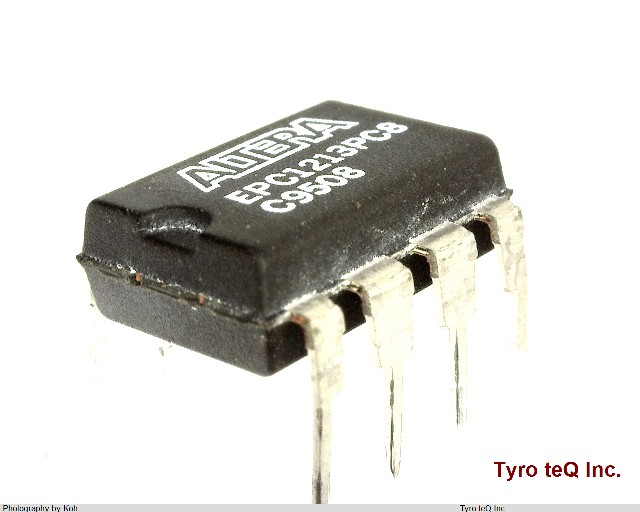

EPC1213PC8 データシート

Name: EPC1213PC8
Brand: ALTERA
SKU: 150000031-0000-0000-0000

EPC1213PC8 - ALTERA の商品詳細ページです。

２営業日以内に回答いたします

EPC1213PC8 の詳細情報

型番	EPC1213PC8
メーカー	ALTERA
データシート
Access Time-Max	75 ns
Additional Feature	4 WIRE INTERFACE TO FLEX 8000 DEVICES
Clock Frequency-Max (fCLK)	6 MHz
I/O Type	COMMON
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.398 mm
Memory Density	212942 bit
Memory IC Type	CONFIGURATION MEMORY
Memory Width	1
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Number of Words	212942 words
Number of Words Code	212942
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	212942X1
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	SERIAL
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	4.318 mm
Standby Current-Max	0.0002 Amp
Sub Category	OTP ROMs
Supply Current-Max	0.05 mA
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
